Marathon

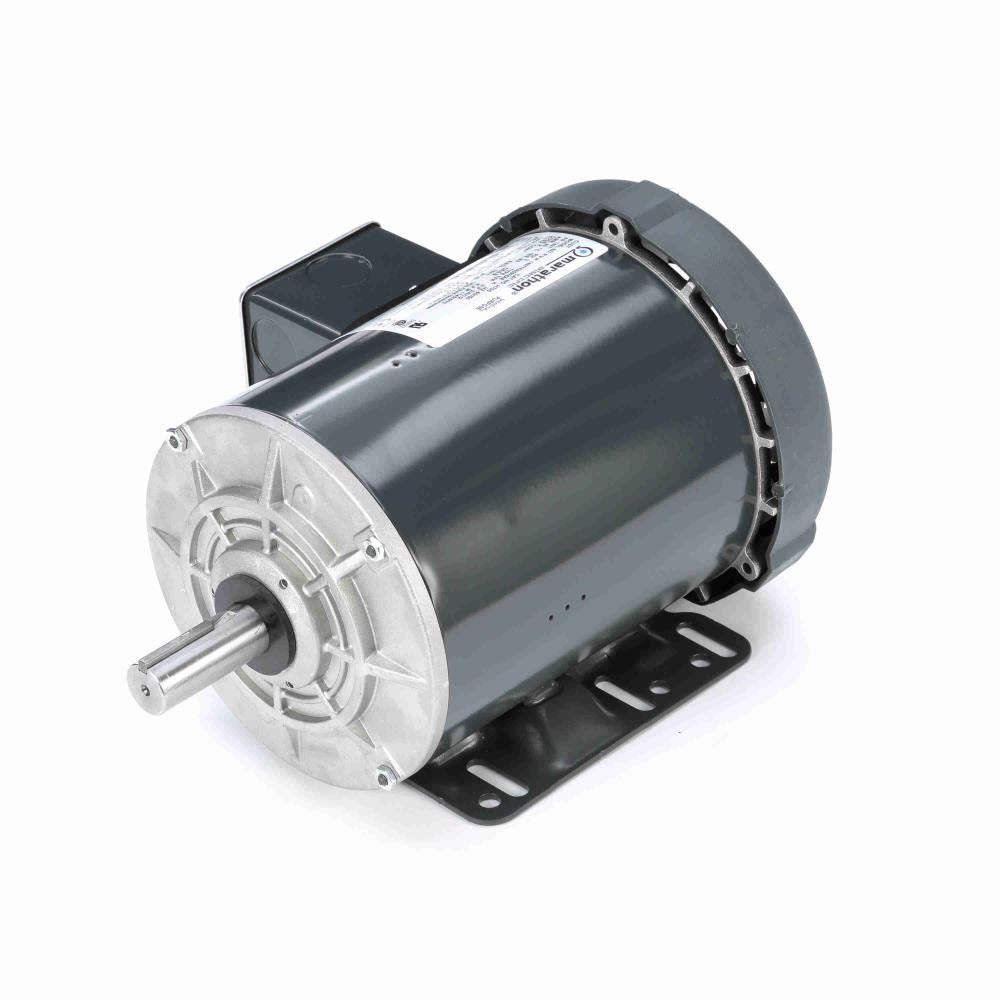

H700 Marathon General Purpose Motor - 3/4 HP - 1145 RPM - 208-230/460 V - Totally Enclosed Fan Cooled
H700 Marathon General Purpose Motor - 3/4 HP - 1145 RPM - 208-230/460 V - Totally Enclosed Fan Cooled
Regular price
$596.95 USD
Regular price
Sale price
$596.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
H700 is a new-in-box General Purpose Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | H700 |
|---|---|
| Manufacturer Model | 143TTFR5376 |
| Stu's / Vendor SKU | MH700 |
Specifications
| Horsepower | 3/4 HP |
|---|---|
| kW | 0.56 kW |
| Rated RPM | 1145 RPM |
| Voltage | 208-230/460 V |
| Frequency | 60 Hz |
| Electrical Type | Squirrel Cage Induction Run |
| Full-Load Amps | 3.2-3.2/1.6 A |
| Service Factor | 1.15 |
| Overload Protection | No |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 74 % |
| Speed Count | 1 |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | F1 ONLY |
| Shaft Configuration | T |
| Shaft Details | Diameter 0.875 in; Extension 2.28 in |
| Rotation | Reversible |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
