Marathon

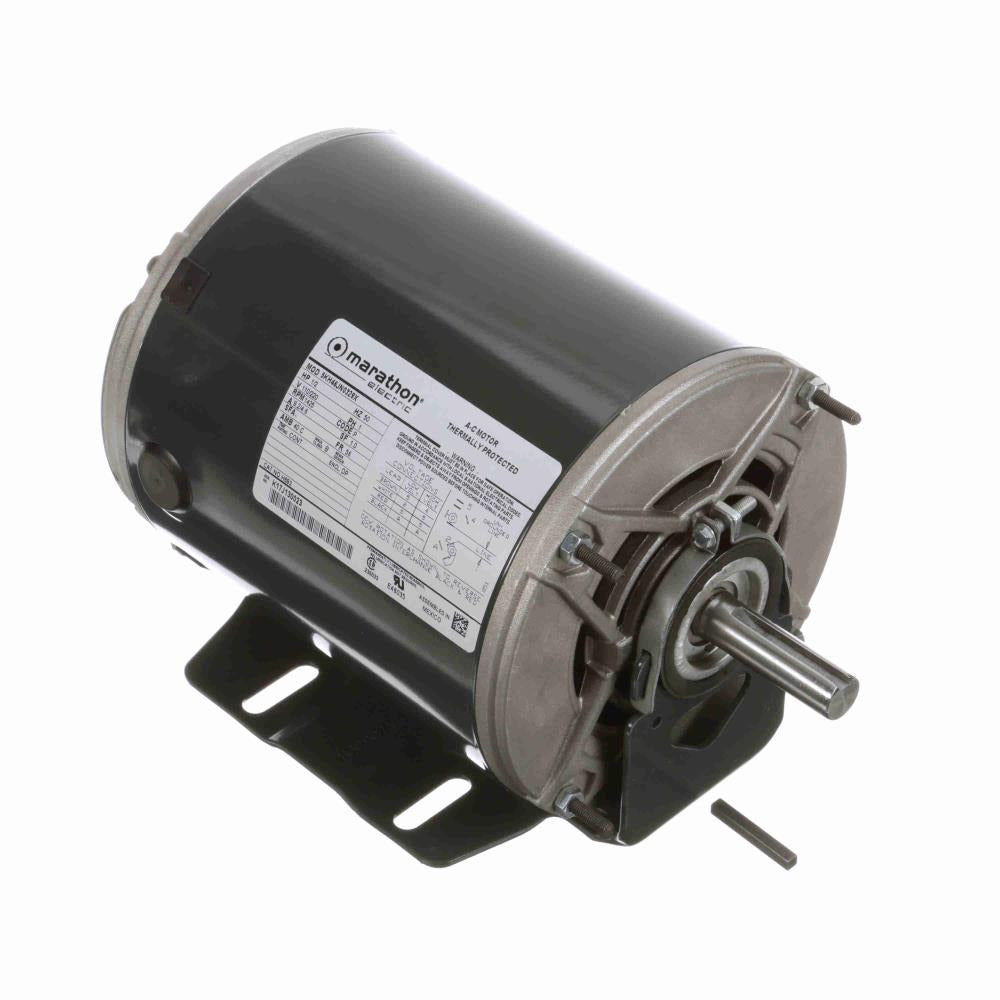

MH693 Marathon General Purpose Motor, 1/2 HP, 1425 RPM, 110/220 V, Single Phase, 56 Frame, ODP
MH693 Marathon General Purpose Motor, 1/2 HP, 1425 RPM, 110/220 V, Single Phase, 56 Frame, ODP
Regular price
$217.95 USD
Regular price
Sale price
$217.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MH693 is a new-in-box General Purpose Motor from Marathon. Manufacturer model H693. Designed for General Purpose.
Specifications
| Manufacturer Part Number | H693 |
|---|---|
| Catalog / Order Number | MH693 |
| Product Type | General Purpose Motor |
| Horsepower | 1/2 HP |
| Rated RPM | 1425 RPM |
| Voltage | 110/220 V |
| Phase | Single Phase |
| Frequency | 50 Hz |
| Electrical Type | Split Phase |
| Full Load Amps | 9.2,4.6 A |
| Service Factor | 1 |
| Overload Protection | AUTO |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | B |
| Frame | 56 |
| Enclosure | ODP |
| Mounting | Resilient Base |
| Shaft Details | Diameter 0.630 in; Extension 1.88 in |
| Rotation | Counterclockwise/Clockwise |
Specifications reflect the exact manufacturer source verified for this product.
