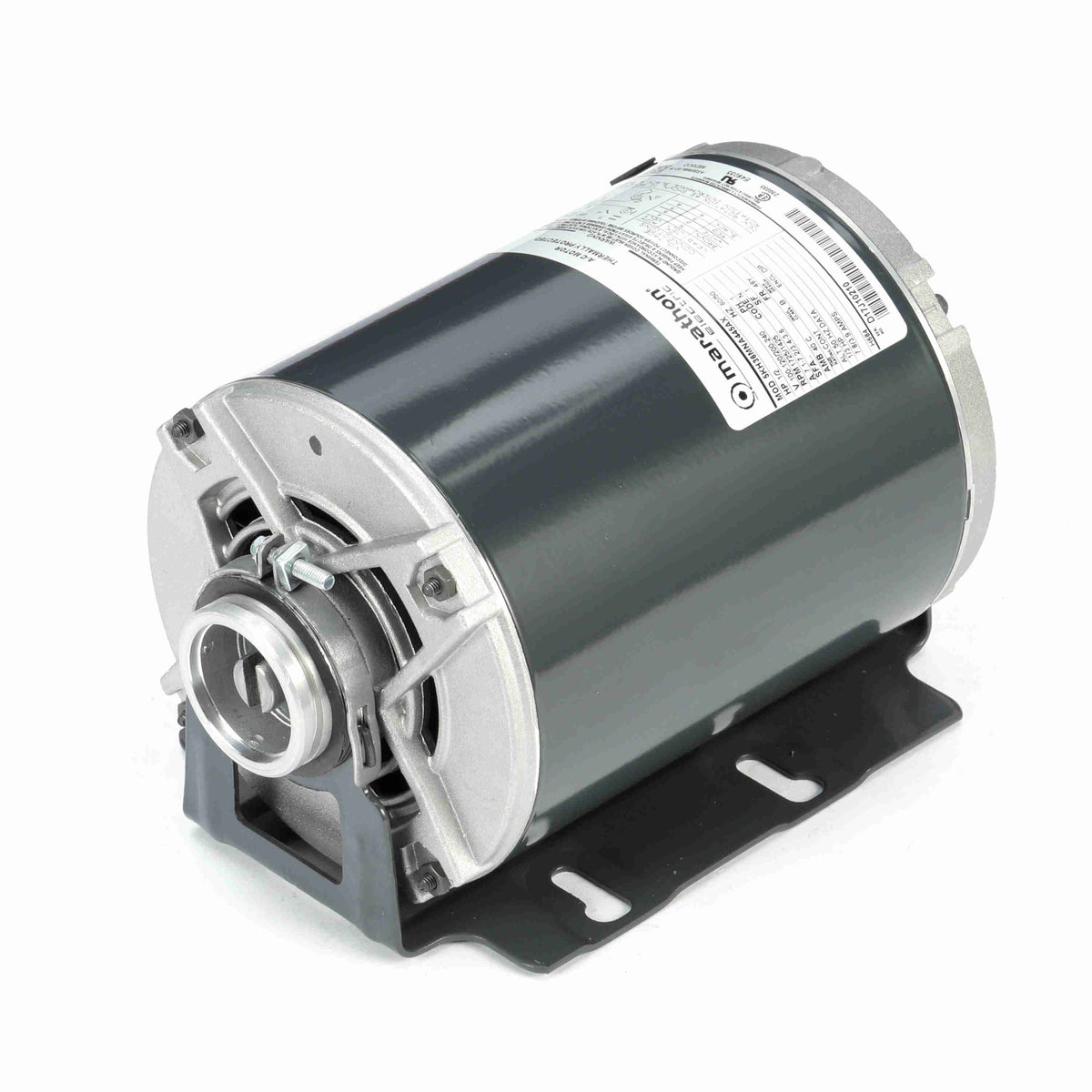

H684 Marathon Carbonator Pump Motor - 1/2 HP - 1725/1425 RPM - 100-120/200-240 V - Drip Proof
H684 Marathon Carbonator Pump Motor - 1/2 HP - 1725/1425 RPM - 100-120/200-240 V - Drip Proof
Regular price
$374.95 USD
Regular price
Sale price
$374.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
H684 is a new-in-box Carbonator Pump Motor from Marathon. Designed for pump applications.
Identifiers
| Manufacturer Catalog Number | H684 |
|---|---|
| Manufacturer Model | 5KH36MNA445X |
| Stu's / Vendor SKU | MH684 |
Specifications
| Horsepower | 1/2 HP |
|---|---|
| kW | 0.37 kW |
| Rated RPM | 1725/1425 RPM |
| Voltage | 100-120/200-240 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Split |
| Service Factor | 1 |
| Overload Protection | Automatic |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 63.3 % |
| Speed Count | 1 |
| Enclosure | Drip Proof |
| Mounting | Resilient Base |
| Shaft Details | Diameter 0.630 in; Extension 0.17 in |
| Rotation | Counterclockwise/Clockwise |
| Bearings | BALL / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
