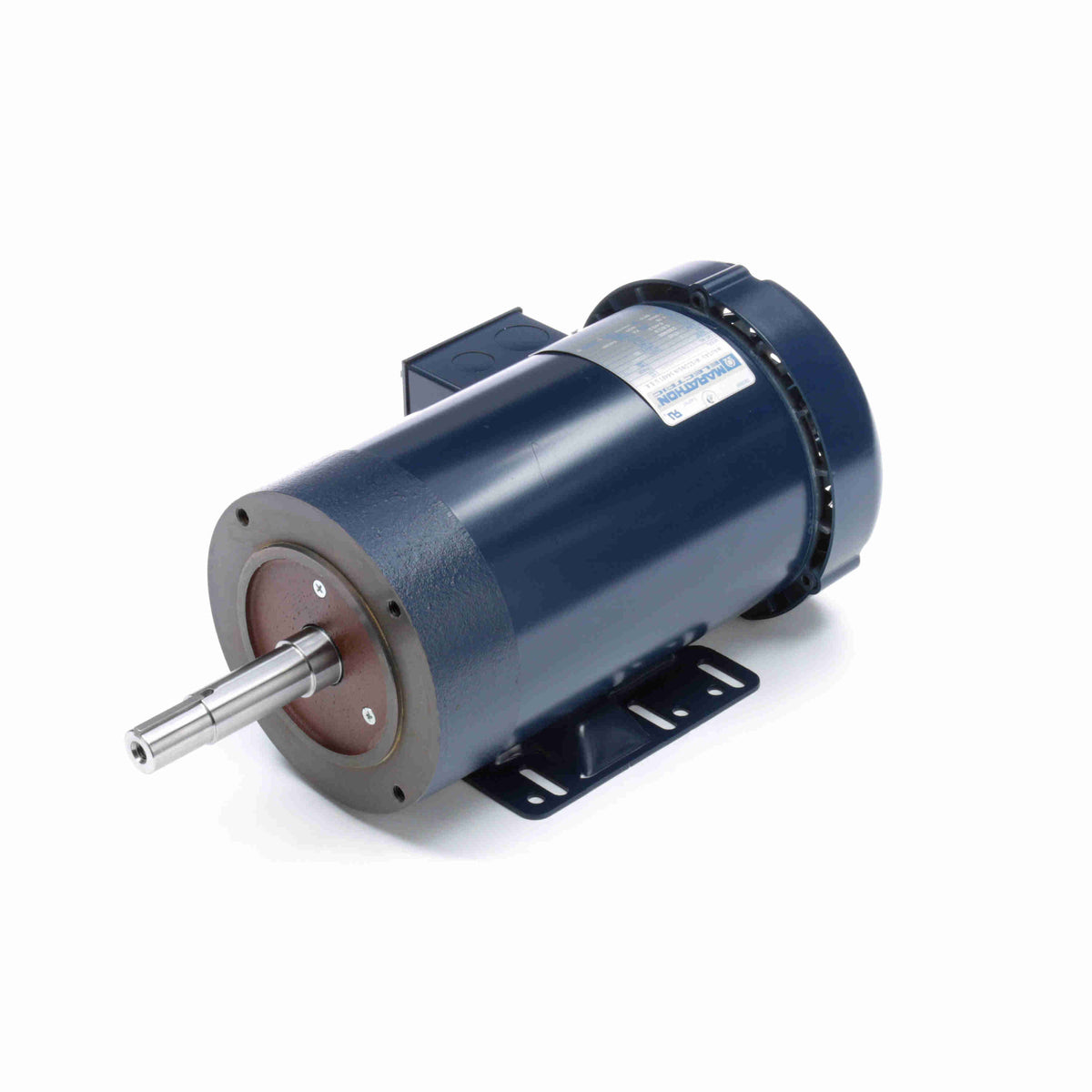

GT3107A Marathon Pump Motor - 2 HP - 1745 RPM - 208-230/460 V - Totally Enclosed Fan Cooled
GT3107A Marathon Pump Motor - 2 HP - 1745 RPM - 208-230/460 V - Totally Enclosed Fan Cooled
Regular price
$741.95 USD
Regular price
Sale price
$741.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
GT3107A is a new-in-box Pump Motor from Marathon. Designed for pump applications.
Identifiers
| Manufacturer Catalog Number | GT3107A |
|---|---|
| Manufacturer Model | 145TTFBD16031 |
| Stu's / Vendor SKU | MGT3107 |
Specifications
| Horsepower | 2 HP |
|---|---|
| kW | 1.5 kW |
| Rated RPM | 1745 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Squirrel Cage Inverter Rated |
| Full-Load Amps | 5.8-5.4/2.7 A |
| Service Factor | 1.15 |
| Overload Protection | No |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 86.5 % |
| Speed Count | 1 |
| Frame | 145JM |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | F1/F2 CAPABLE |
| Shaft Configuration | JM |
| Shaft Details | Diameter 0.875 in |
| Rotation | Reversible |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
