Marathon

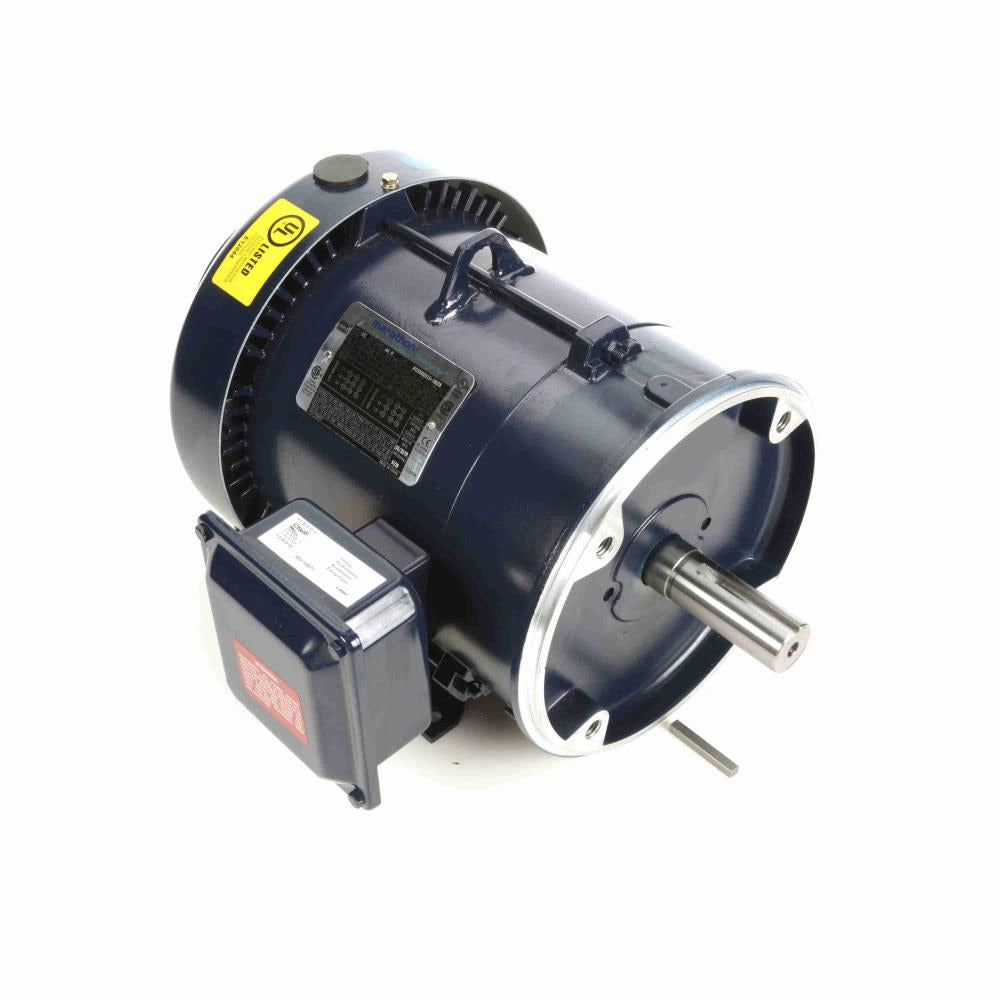

GT1209A Marathon General Purpose Motor - 3-2 HP - TEFC
GT1209A Marathon General Purpose Motor - 3-2 HP - TEFC
Regular price
$640.95 USD
Regular price
Sale price
$640.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
GT1209A is a new-in-box General Purpose Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | GT1209A |
|---|---|
| Manufacturer Model | 182TTFBD6003 |
| Stu's / Vendor SKU | MGT1209 |
Specifications
| Horsepower | 3 HP |
|---|---|
| Alternate Horsepower | 2 HP |
| Phase | Three Phase |
| Electrical Type | Squirrel Cage Inverter Rated |
| Overload Protection | NOT |
| Duty Rating | CONTINUOUS |
| Ambient Rating | 40 °C |
| Insulation Class | F3 |
| Enclosure | TEFC |
| Mounting | F1/F2 CAPABLE |
| Shaft Configuration | T |
| Shaft Details | Diameter 1.125 in; Extension 2.75 in |
| Rotation | REV |
| Bearings | BALL / BALL |
| Material | ROLLED STEEL |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
