TECO-WESTINGHOUSE

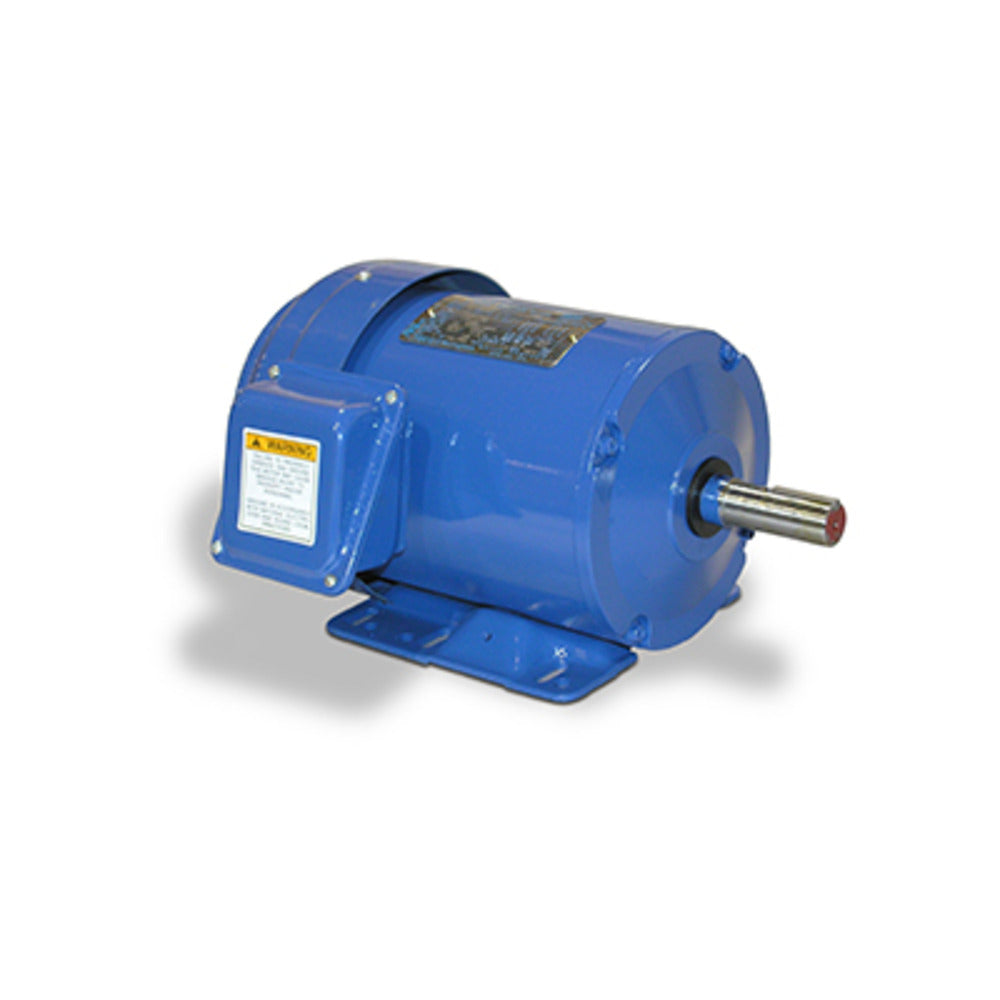

GP0054C TECO-WESTINGHOUSE General Purpose Motor, 5 HP, 1740 RPM, 230/460 V, Three Phase, 184TC Frame, TEFC
GP0054C TECO-WESTINGHOUSE General Purpose Motor, 5 HP, 1740 RPM, 230/460 V, Three Phase, 184TC Frame, TEFC
Regular price
$722.95 USD
Regular price
Sale price
$722.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
GP0054C is a new-in-box General Purpose Motor from TECO-WESTINGHOUSE. Designed for General purpose industrial motor.
Specifications
| Manufacturer Part Number | GP0054C |
|---|---|
| Product Type | General Purpose Motor |
| Horsepower | 5 HP |
| Rated RPM | 1740 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three-phase induction |
| Full Load Amps | 230/460 A |
| Service Factor | 1.15 |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | F |
| Frame | 184TC |
| Enclosure | TEFC |
| Mounting | Footed |
Specifications reflect the exact manufacturer source verified for this product.
