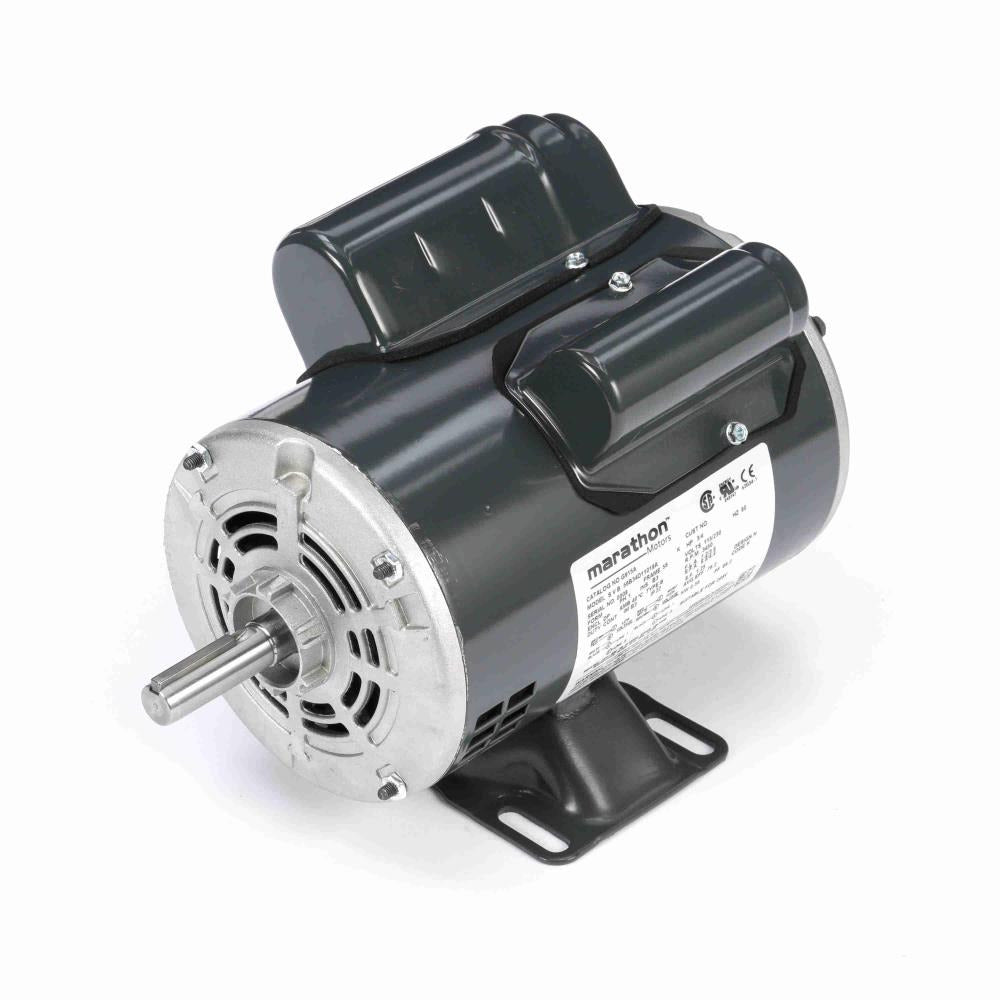

MG915A Marathon General Purpose Motor, 3/4 HP, 3450 RPM, 115/230 V, Single Phase, 56 Frame, ODP
MG915A Marathon General Purpose Motor, 3/4 HP, 3450 RPM, 115/230 V, Single Phase, 56 Frame, ODP
Regular price
$405.95 USD
Regular price
Sale price
$405.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MG915A is a new-in-box General Purpose Motor from Marathon. Manufacturer model G915A. Designed for General Purpose.
Specifications
| Manufacturer Part Number | G915A |
|---|---|
| Catalog / Order Number | MG915A |
| Product Type | General Purpose Motor |
| Horsepower | 3/4 HP |
| Rated RPM | 3450 RPM |
| Voltage | 115/230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Capacitor Run |
| Full Load Amps | 7.2/3.6 A |
| Service Factor | 1.25 |
| Overload Protection | No |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | B |
| Frame | 56 |
| Enclosure | ODP |
| Mounting | F1 ONLY |
| Shaft Configuration | NEMA 56 |
| Shaft Details | Diameter 0.625 in; Extension 1.97 in |
| Rotation | Selective Counterclockwise |
Specifications reflect the exact manufacturer source verified for this product.
