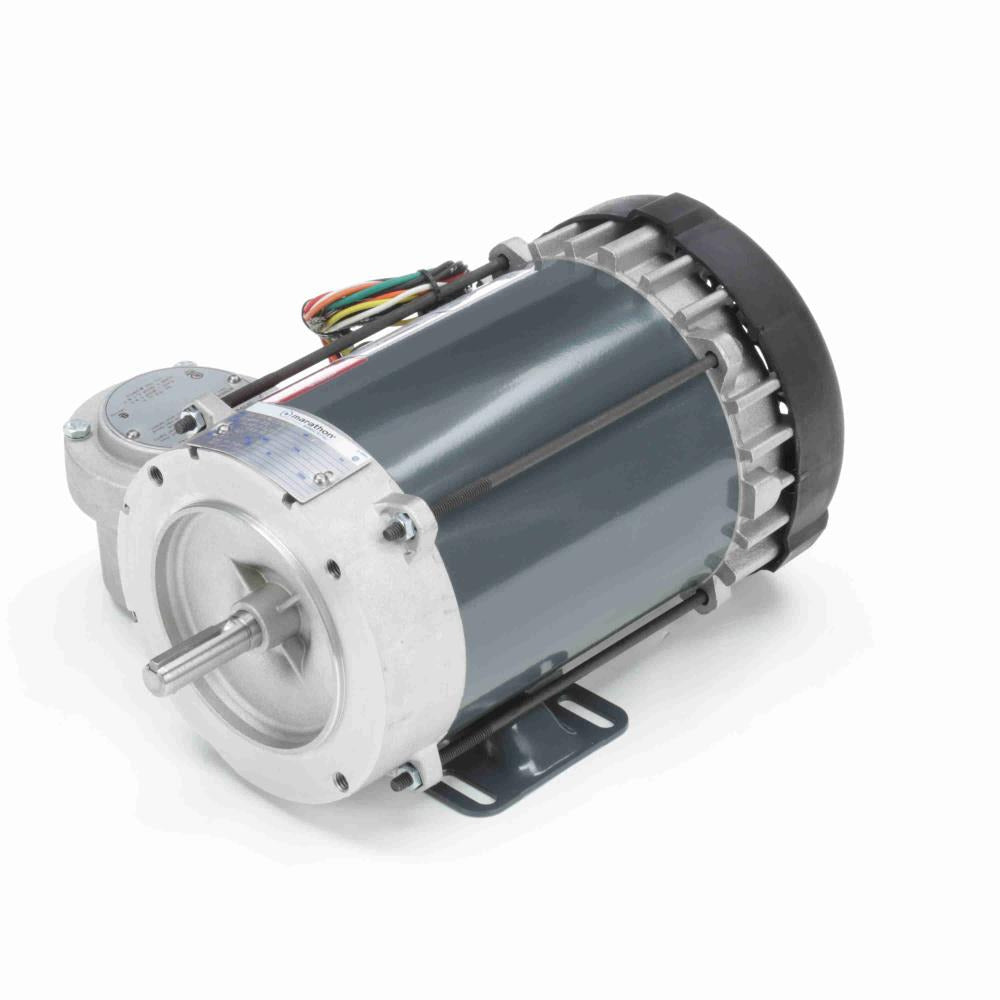

G873 Marathon Hazardous Location Motor - 3/4 HP - 3450 RPM - 115/208-230 V - Explosion Proof Fan cooled
G873 Marathon Hazardous Location Motor - 3/4 HP - 3450 RPM - 115/208-230 V - Explosion Proof Fan cooled
Regular price
$582.95 USD
Regular price
Sale price
$582.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
G873 is a new-in-box Hazardous Location Motor from Marathon. Designed for hazardous-location applications.
Identifiers
| Manufacturer Catalog Number | G873 |
|---|---|
| Manufacturer Model | 056C34G5314 |
| Stu's / Vendor SKU | MG873 |
Specifications
| Horsepower | 3/4 HP |
|---|---|
| kW | 0.56 kW |
| Rated RPM | 3450 RPM |
| Voltage | 115/208-230 V |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Induction Run |
| Full-Load Amps | 10.6/5.3-5.3 A |
| Service Factor | 1 |
| Overload Protection | Automatic |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 66 % |
| Speed Count | 1 |
| Enclosure | Explosion Proof Fan cooled |
| Mounting | F1 ONLY |
| Shaft Configuration | NEMA 56 |
| Shaft Details | Diameter 0.625 in; Extension 2.06 in |
| Rotation | Selective Counterclockwise |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
