Marathon

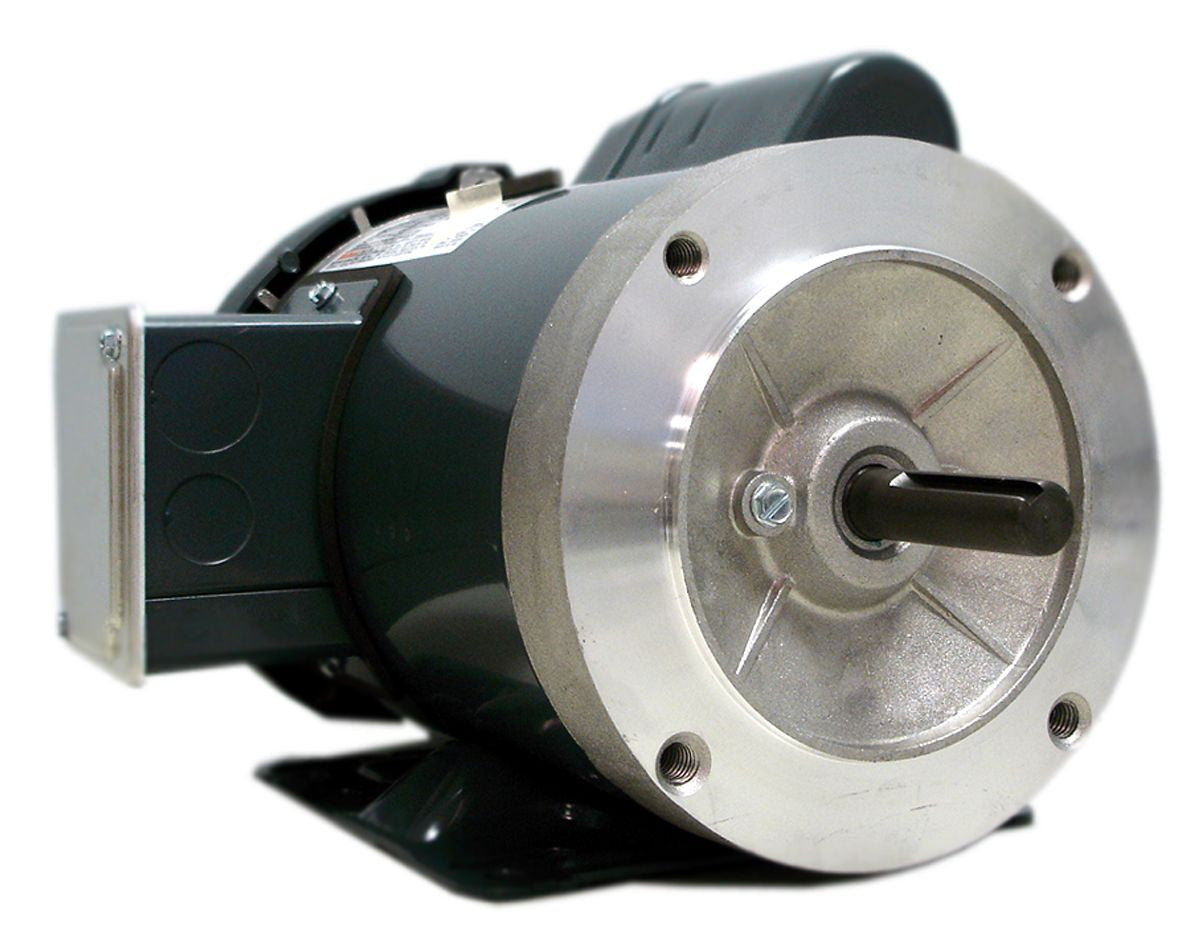

G573 Marathon General Purpose Motor - 1 HP - 1725 RPM - 115/208-230 V - Totally Enclosed Fan Cooled
G573 Marathon General Purpose Motor - 1 HP - 1725 RPM - 115/208-230 V - Totally Enclosed Fan Cooled
Regular price
$435.95 USD
Regular price
Sale price
$435.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
G573 is a new-in-box General Purpose Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | G573 |
|---|---|
| Manufacturer Model | 056C17F5323 |
| Stu's / Vendor SKU | MG573 |
Specifications
| Horsepower | 1 HP |
|---|---|
| kW | 0.75 kW |
| Rated RPM | 1725 RPM |
| Voltage | 115/208-230 V |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Induction Run |
| Full-Load Amps | 13.4/6.8-6.7 A |
| Service Factor | 1.15 |
| Overload Protection | No |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 72 % |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | F1 ONLY |
| Shaft Configuration | NEMA 56 |
| Shaft Details | Diameter 0.625 in; Extension 2.06 in |
| Rotation | Selective Counterclockwise |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
