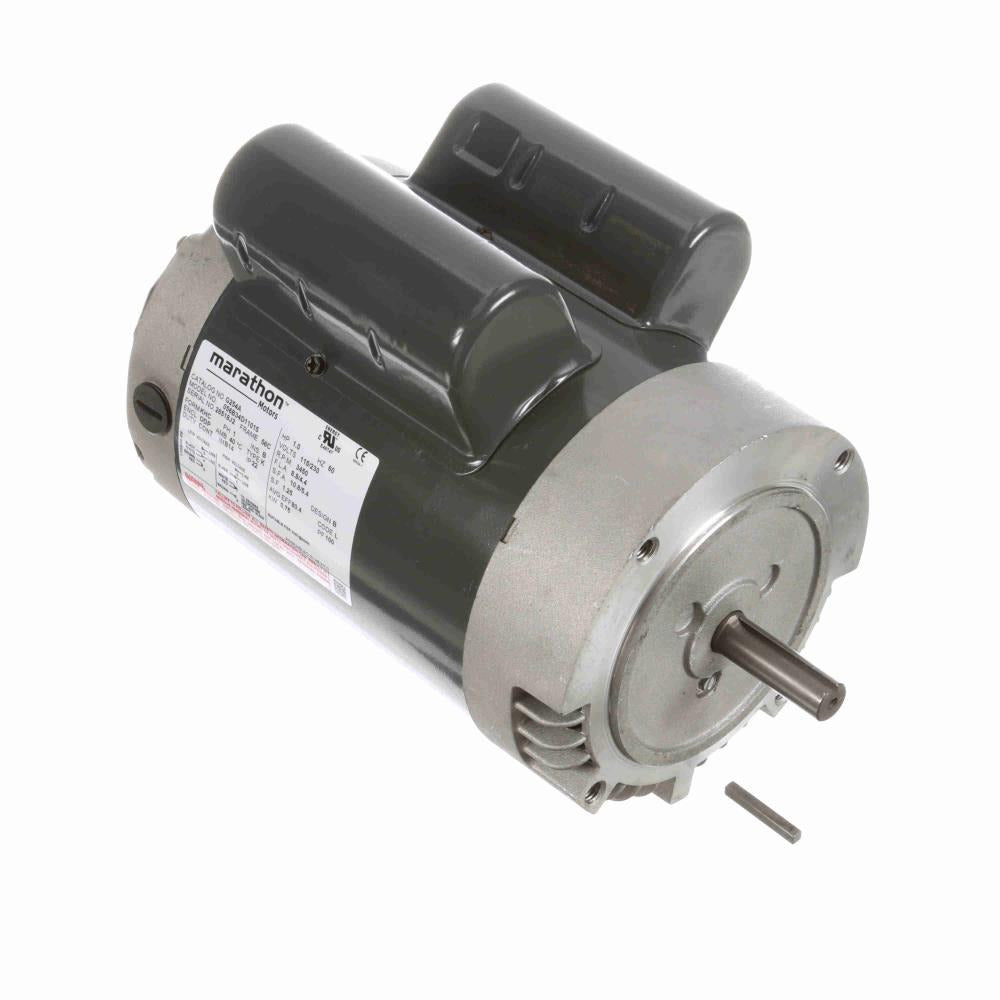

G254A Marathon General Purpose Motor - 1 HP - 3450 RPM - 115/230 V - Drip Proof
G254A Marathon General Purpose Motor - 1 HP - 3450 RPM - 115/230 V - Drip Proof
Regular price
$129.95 USD
Regular price
Sale price
$129.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
G254A is a new-in-box General Purpose Motor from Marathon. Designed for general-purpose applications.
Identifiers
| Manufacturer Catalog Number | G254A |
|---|---|
| Manufacturer Model | 056B34D11015 |
| Stu's / Vendor SKU | MG254A |
Specifications
| Horsepower | 1 HP |
|---|---|
| kW | 0.75 kW |
| Rated RPM | 3450 RPM |
| Voltage | 115/230 V |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start Capacitor Run |
| Full-Load Amps | 8.8/4.4 A |
| Service Factor | 1.15 |
| Overload Protection | No |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 80.4 % |
| Enclosure | Drip Proof |
| Mounting | F1 OUT ODE BRKT RADIAL |
| Shaft Configuration | T |
| Shaft Details | Diameter 0.625 in; Extension 1.88 in |
| Rotation | Selective Counterclockwise |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
