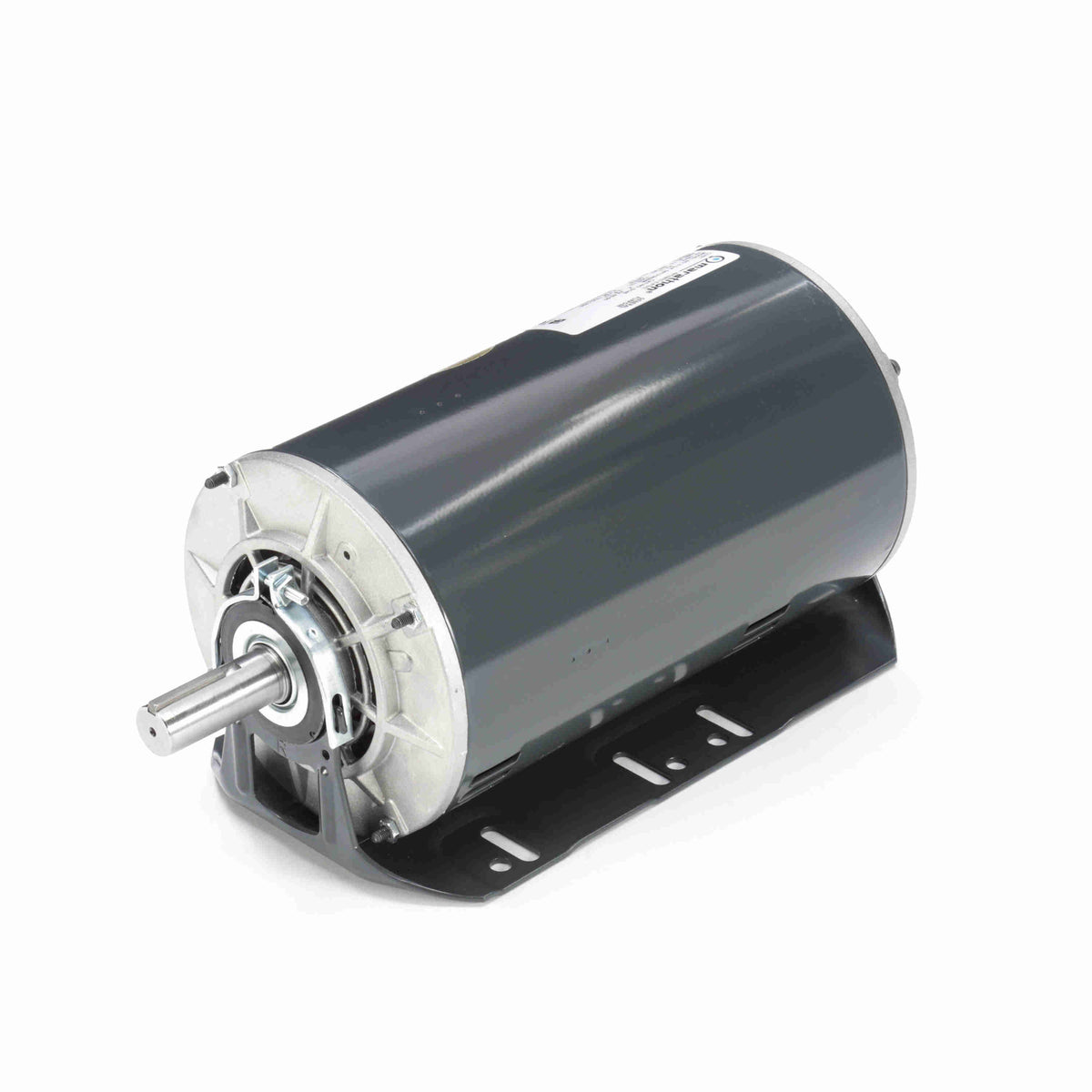

G145 Marathon Fan & Blower Motor - 3 HP - 1725 RPM - 208-230/460 V - Drip Proof
G145 Marathon Fan & Blower Motor - 3 HP - 1725 RPM - 208-230/460 V - Drip Proof
Regular price
$591.95 USD
Regular price
Sale price
$591.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
G145 is a new-in-box Fan & Blower Motor from Marathon. Designed for HVAC and fan applications.
Identifiers
| Manufacturer Catalog Number | G145 |
|---|---|
| Manufacturer Model | 056T17D5350 |
| Stu's / Vendor SKU | MG145 |
Specifications
| Horsepower | 3 HP |
|---|---|
| kW | 2.2 kW |
| Rated RPM | 1725 RPM |
| Voltage | 208-230/460 V |
| Frequency | 60 Hz |
| Electrical Type | Squirrel Cage Induction Run |
| Full-Load Amps | 9.2-8.6/4.3 A |
| Service Factor | 1.15 |
| Overload Protection | Automatic |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 84 % |
| Speed Count | 1 |
| Enclosure | Drip Proof |
| Mounting | F1 ONLY |
| Shaft Configuration | NEMA 145T |
| Shaft Details | Diameter 0.625 in; Extension 2.28 in |
| Rotation | Reversible |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
