Marathon

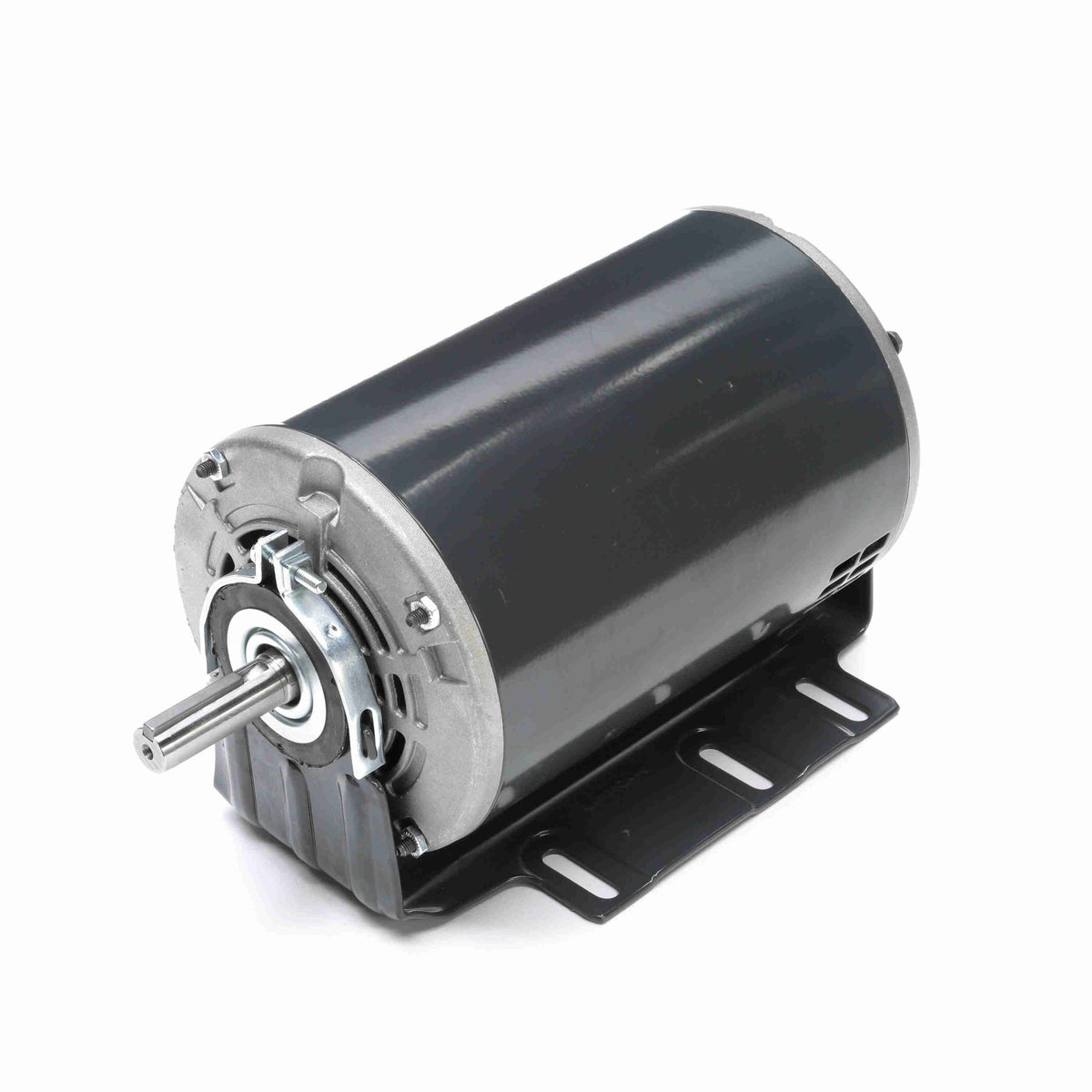

G100 Marathon Fan & Blower Motor - 1 HP - 1725 RPM - 208-230/460 V - Drip Proof
G100 Marathon Fan & Blower Motor - 1 HP - 1725 RPM - 208-230/460 V - Drip Proof
Regular price
$412.95 USD
Regular price
Sale price
$412.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
G100 is a new-in-box Fan & Blower Motor from Marathon. Designed for HVAC and fan applications.
Identifiers
| Manufacturer Catalog Number | G100 |
|---|---|
| Manufacturer Model | 056T17D2101 |
| Stu's / Vendor SKU | MG100 |
Specifications
| Horsepower | 1 HP |
|---|---|
| kW | 0.75 kW |
| Rated RPM | 1725 RPM |
| Voltage | 208-230/460 V |
| Frequency | 60 Hz |
| Electrical Type | Squirrel Cage Induction Run |
| Full-Load Amps | 3.4-3.4/1.7 A |
| Service Factor | 1.15 |
| Overload Protection | Automatic |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 76.5 % |
| Enclosure | Drip Proof |
| Mounting | F1 ONLY |
| Shaft Configuration | NEMA 56 |
| Shaft Details | Diameter 0.625 in; Extension 1.97 in |
| Rotation | Reversible |
| Bearings | Ball / Ball |
| Material | Rolled Steel |
Technical values shown here are limited to manufacturer-verified data carried in the governed Marathon product record. Unverified optional fields are omitted rather than labeled unavailable.
