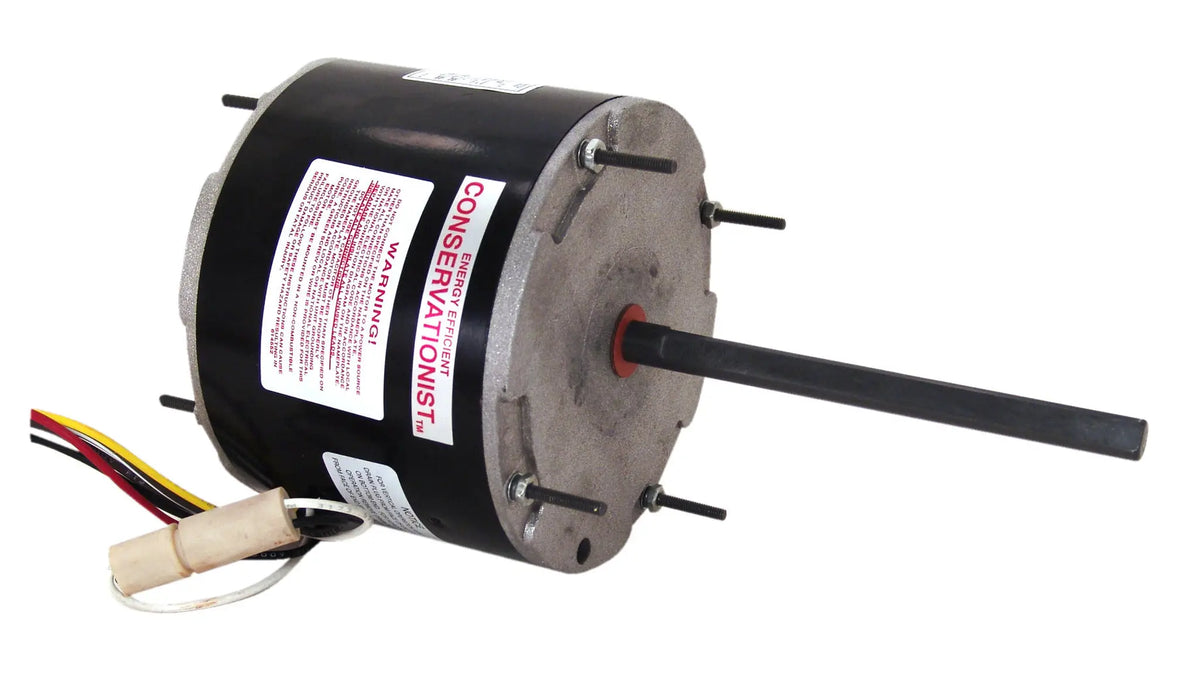

FSE1056 Century Condenser Fan Motor, 1/2 HP, 1075 RPM, 208-230 V, Single Phase, 48Y Frame, TEAO
FSE1056 Century Condenser Fan Motor, 1/2 HP, 1075 RPM, 208-230 V, Single Phase, 48Y Frame, TEAO
Regular price
$331.95 USD
Regular price
Sale price
$331.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
FSE1056 is a new-in-box Condenser Fan Motor from Century. Designed for Condenser, heat-pump, and refrigeration service.
Specifications
| Manufacturer Part Number | FSE1056 |
|---|---|
| Product Type | Condenser Fan Motor |
| Horsepower | 1/2 HP |
| Rated RPM | 1075 RPM |
| Voltage | 208-230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Permanent split capacitor |
| Full Load Amps | 2.8 rated; 4.0 max |
| Insulation Class | B |
| Speed Count | 2 |
| Frame | 48Y |
| Enclosure | TEAO |
| Shaft Details | Single 1/2 in flatted shaft; no mounting hubs |
| Rotation | Reversible |
| Motor Diameter | 5.625 in |
Specifications reflect the exact manufacturer source verified for this product.
