US Motors / Nidec

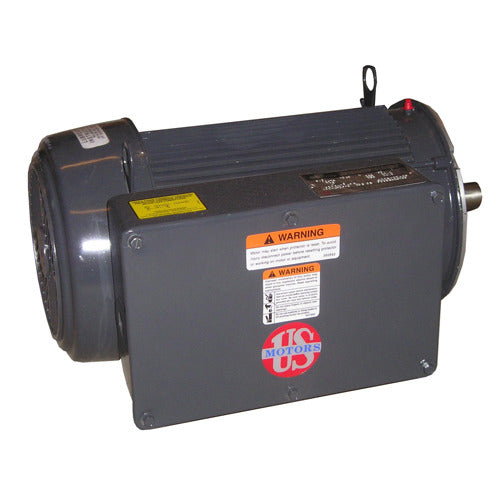

FDU2CM2P18Z US Motors / Nidec Farm Duty Motor - 2 HP - 1800 RPM - 115/230 V - TEFC
FDU2CM2P18Z US Motors / Nidec Farm Duty Motor - 2 HP - 1800 RPM - 115/230 V - TEFC
Regular price
$683.95 USD
Regular price
Sale price
$683.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
FDU2CM2P18Z is a new-in-box Farm Duty Motor from US Motors / Nidec. Designed for high-starting-torque agriculture equipment including agitators, augers, conveyors, barn cleaners, manure pumps, and silo unloaders.
Specifications
| Horsepower | 2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1800 RPM |
| Voltage | 115/230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start |
| Full-Load Amps | 25.6/12.8 A |
| Service Factor | 1.15 |
| Overload Protection | Manual reset thermal overload protector |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Speed Count | 1 |
| Frame | 182TZ |
| Enclosure | TEFC |
| Mounting | Rigid base, footed |
| Rotation | Reversible |
| Bearings | Double-shielded ball bearings with low-temperature grease |
| Material | Aluminum |
| C Dimension | 16.8 in |
| Length | 16.8 in |
| Width | 18 in |
| Height | 13 in |
| Ship Weight | 66 lb |
| Country of Origin | MEX |
