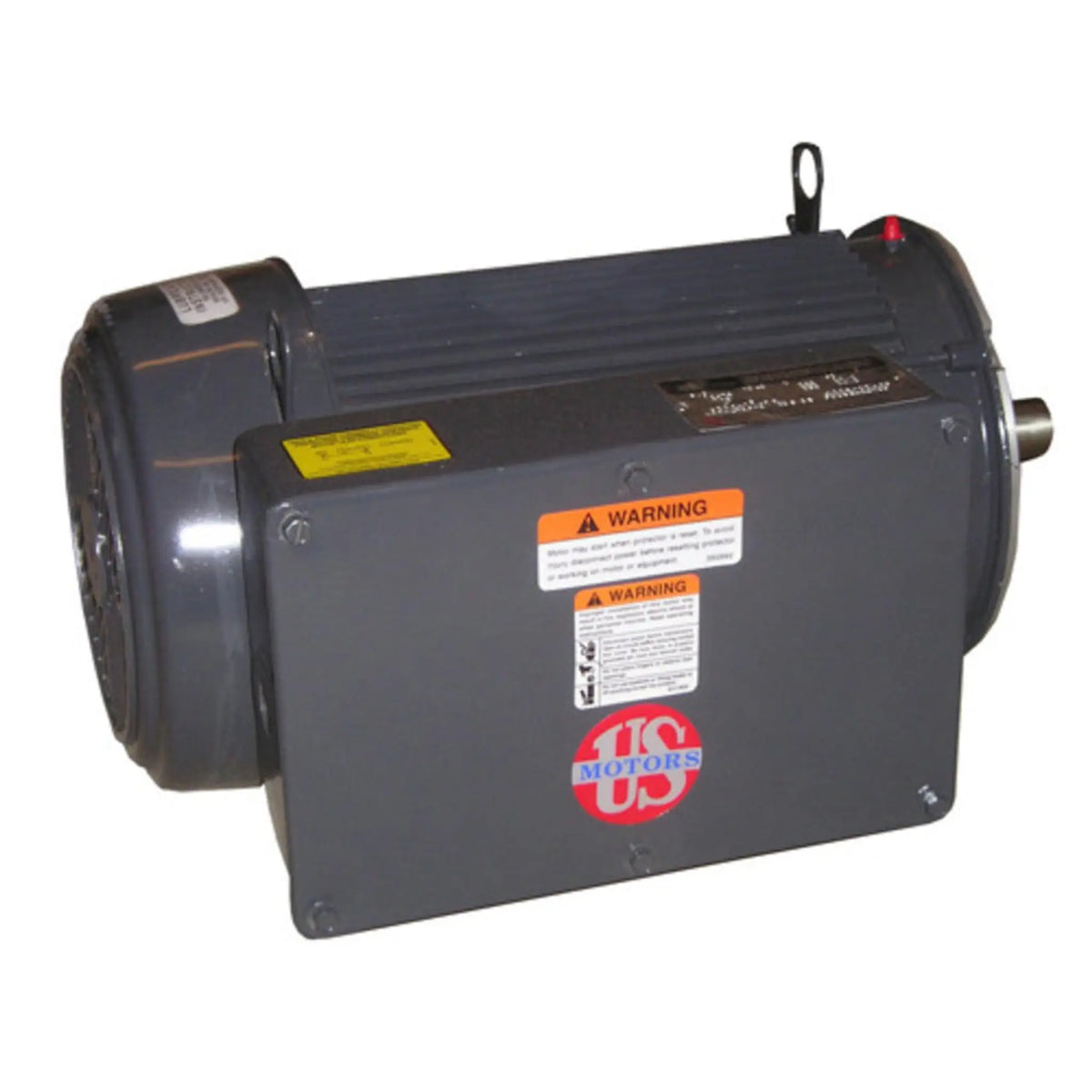

FDU10CM2K21 US Motors / Nidec Farm Duty Motor - 10 HP - 1800 RPM - 230 V - TEFC
FDU10CM2K21 US Motors / Nidec Farm Duty Motor - 10 HP - 1800 RPM - 230 V - TEFC
Regular price
$1,401.95 USD
Regular price
Sale price
$1,401.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
FDU10CM2K21 is a new-in-box Farm Duty Motor from US Motors / Nidec. Designed for high-starting-torque agriculture equipment including agitators, augers, conveyors, barn cleaners, manure pumps, and silo unloaders.
Specifications
| Horsepower | 10 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1800 RPM |
| Voltage | 230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start |
| Full-Load Amps | 41 A |
| Service Factor | 1.15 |
| Overload Protection | Manual reset thermal overload protector |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Speed Count | 1 |
| Frame | 215T |
| Enclosure | TEFC |
| Mounting | Rigid base, footed |
| Rotation | Reversible |
| Bearings | Double-shielded ball bearings with low-temperature grease |
| Material | Aluminum |
| C Dimension | 21.4 in |
| Length | 21.4 in |
| Ship Weight | 153 lb |
| Country of Origin | MEX |
