US Motors / Nidec

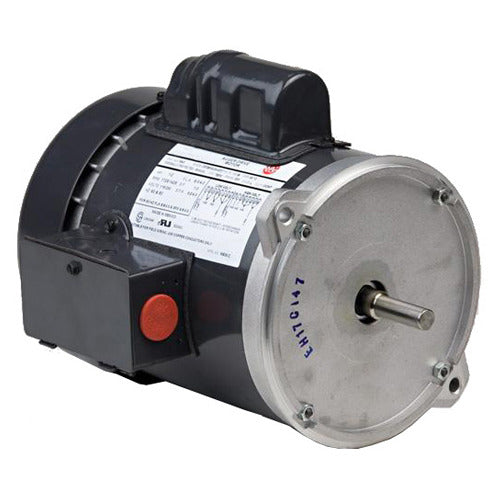

FD34SM2DZYR US Motors / Nidec Auger Duty Motor - 3/4 HP - 1800 RPM - 190/380 & 208-230/460 V - TEFC
FD34SM2DZYR US Motors / Nidec Auger Duty Motor - 3/4 HP - 1800 RPM - 190/380 & 208-230/460 V - TEFC
Regular price
$405.95 USD
Regular price
Sale price
$405.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
FD34SM2DZYR is a new-in-box Auger Duty Motor from US Motors / Nidec. Designed for agriculture augers.
Specifications
| Horsepower | 3/4 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1800 RPM |
| Voltage | 190/380 & 208-230/460 V |
| Phase | Three Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 3.0/1.5 & 2.7-2.6/1.3 A |
| Service Factor | 1 |
| Overload Protection | Manual reset thermal overload protector |
| Duty Rating | Continuous duty |
| Insulation Class | B |
| Speed Count | 1 |
| Frame | 56Y |
| Enclosure | TEFC |
| Mounting | Footless auger-duty mount |
| Shaft Configuration | Keyed auger shaft with opposite-drive-end hand-crank extension |
| Rotation | Reversible |
| Bearings | Ball bearings |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| C Dimension | 11.8 in |
| Length | 11.8 in |
| Ship Weight | 27 lb |
| Country of Origin | MEX |
