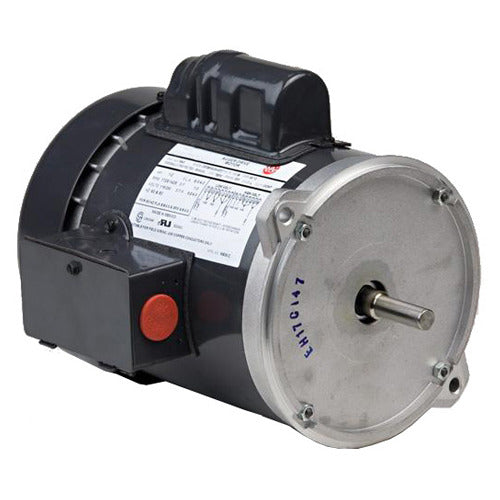

FD32PM2DZYR US Motors / Nidec Auger Duty Motor - 1 1/2 HP - 1725 RPM - 230/460 V - TEFC
FD32PM2DZYR US Motors / Nidec Auger Duty Motor - 1 1/2 HP - 1725 RPM - 230/460 V - TEFC
Regular price
$534.95 USD
Regular price
Sale price
$534.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
FD32PM2DZYR is a new-in-box Auger Duty Motor from US Motors / Nidec. Designed for auger-duty farm and agricultural equipment.
Specifications
| Horsepower | 1 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 60/50 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 4.5-4.5/2.2 A (60 Hz); 4.5/2.2 A (50 Hz) |
| Service Factor | 1.15 |
| Overload Protection | Manual reset |
| Duty Rating | Not available from manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 86.5 % |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 56Y |
| Enclosure | TEFC |
| Mounting | N-flange |
| Shaft Details | Manufacturer shaft code Y |
| Rotation | Reversible |
| Bearings | DE 6203; ODE 6203 |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Ship Weight | 38 lb |
| Country of Origin | MEX |
