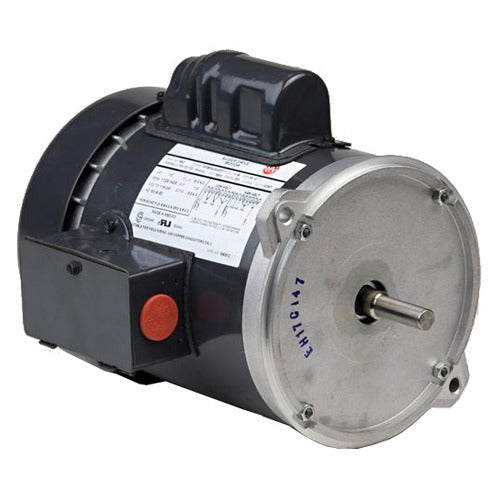

FD32CM2PHZY US Motors / Nidec Auger Duty Motor - 1 1/2 HP - 1725 RPM - 115/230 V - TEFC
FD32CM2PHZY US Motors / Nidec Auger Duty Motor - 1 1/2 HP - 1725 RPM - 115/230 V - TEFC
Regular price
$401.95 USD
Regular price
Sale price
$401.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
FD32CM2PHZY is a new-in-box Auger Duty Motor from US Motors / Nidec. Designed for auger drive service.
Specifications
| Horsepower | 1 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 115/230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start |
| Full-Load Amps | 16.2/8.1 A |
| Service Factor | 1.15 |
| Overload Protection | Manual reset thermal protector |
| Duty Rating | Not available from manufacturer |
| Ambient Rating | Not available from manufacturer |
| Insulation Class | B |
| Efficiency | Not available from manufacturer |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 56Y |
| Enclosure | TEFC |
| Mounting | Rigid base (footed) |
| Shaft Configuration | 56Y |
| Shaft Details | Keyed shaft with opposite-drive-end hand-crank extension |
| Rotation | Reversible |
| Bearings | Ball bearings |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| C Dimension | 13.9 in |
| Ship Weight | 45 lb |
| Country of Origin | MEX |
