US Motors / Nidec

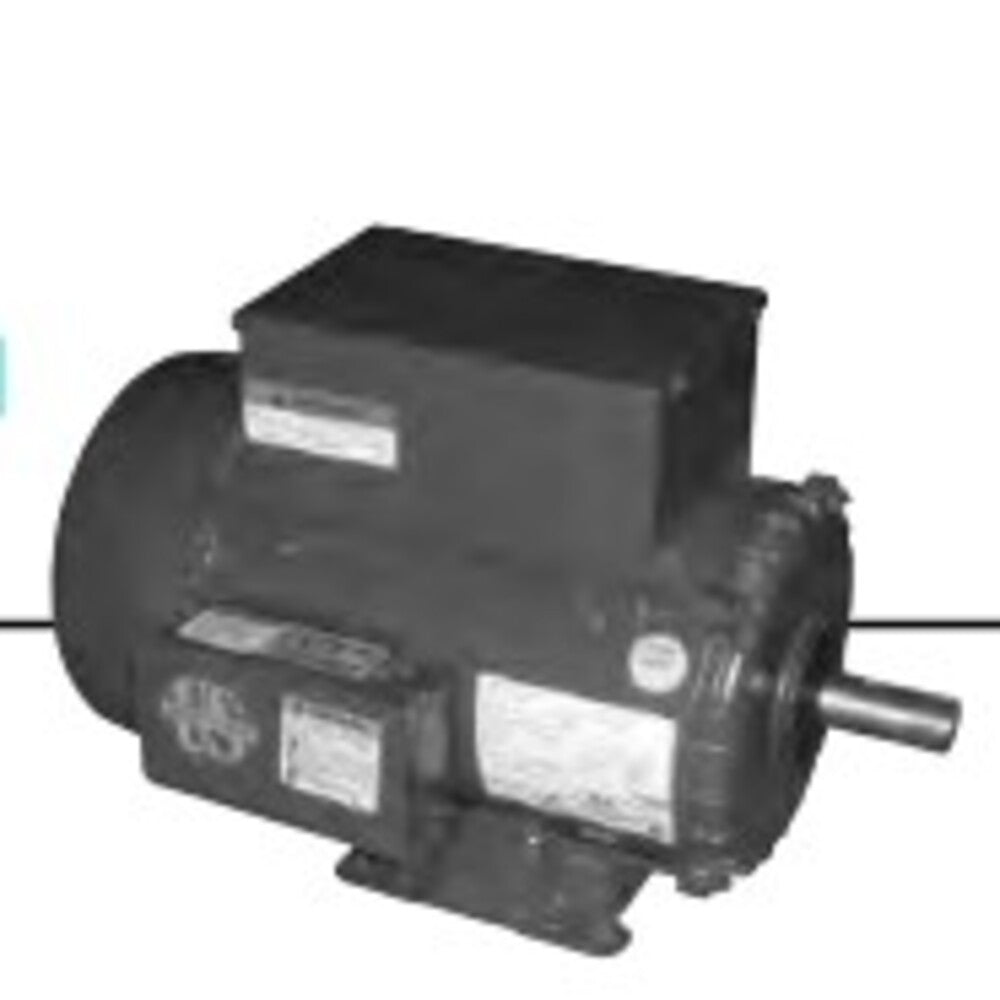

FD32CM2PCR US Motors / Nidec Farm Duty Motor - 1 1/2 HP - 1800 RPM - 115/230 V - TEFC
FD32CM2PCR US Motors / Nidec Farm Duty Motor - 1 1/2 HP - 1800 RPM - 115/230 V - TEFC
Regular price
$460.95 USD
Regular price
Sale price
$460.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
FD32CM2PCR is a new-in-box Farm Duty Motor from US Motors / Nidec. Designed for agriculture equipment including agitators, augers, compressors, conveyors, feeders, hay hoists, barn cleaners, manure pumps, and silo unloaders.
Specifications
| Horsepower | 1 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1800 RPM |
| Voltage | 115/230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start |
| Full-Load Amps | 16.2/8.1 A |
| Service Factor | 1.15 |
| Overload Protection | Manual reset thermal overload protector |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Speed Count | 1 |
| Frame | 56C |
| Enclosure | TEFC |
| Mounting | C-face, footless |
| Rotation | Reversible |
| Bearings | Double-shielded ball bearings with low-temperature grease |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| C Dimension | 13.9 in |
| Length | 13.9 in |
| Ship Weight | 44 lb |
| Country of Origin | MEX |
