US Motors / Nidec

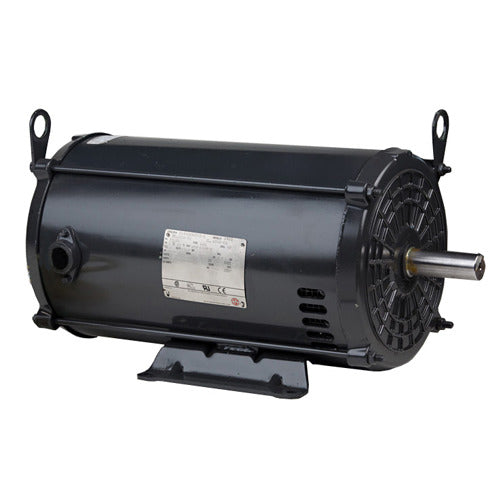

FD2CA1P14 US Motors / Nidec Farm Duty Fan Motor - 2 HP - 3600 RPM - 115/230 V - TEAO
FD2CA1P14 US Motors / Nidec Farm Duty Fan Motor - 2 HP - 3600 RPM - 115/230 V - TEAO
Regular price
$684.95 USD
Regular price
Sale price
$684.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
FD2CA1P14 is a new-in-box Farm Duty Fan Motor from US Motors / Nidec. Designed for aeration fan motor for direct-drive air-over applications.
Specifications
| Horsepower | 2 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3600 RPM |
| Voltage | 115/230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start |
| Full-Load Amps | 22.2/11.1 A |
| Service Factor | 1 |
| Overload Protection | Automatic reset thermal overload protector |
| Duty Rating | Air-over duty |
| Insulation Class | F |
| Efficiency | 75.5 % |
| Speed Count | 1 |
| Frame | 143TZ |
| Enclosure | TEAO |
| Mounting | Rigid base, F1 assembly |
| Shaft Configuration | Non-standard keyed fan shaft |
| Rotation | Reversible |
| Bearings | Ball |
| Material | Rolled Steel |
| C Dimension | 13.8 in |
| Length | 13.8 in |
| Ship Weight | 32 lb |
| Country of Origin | MEX |
