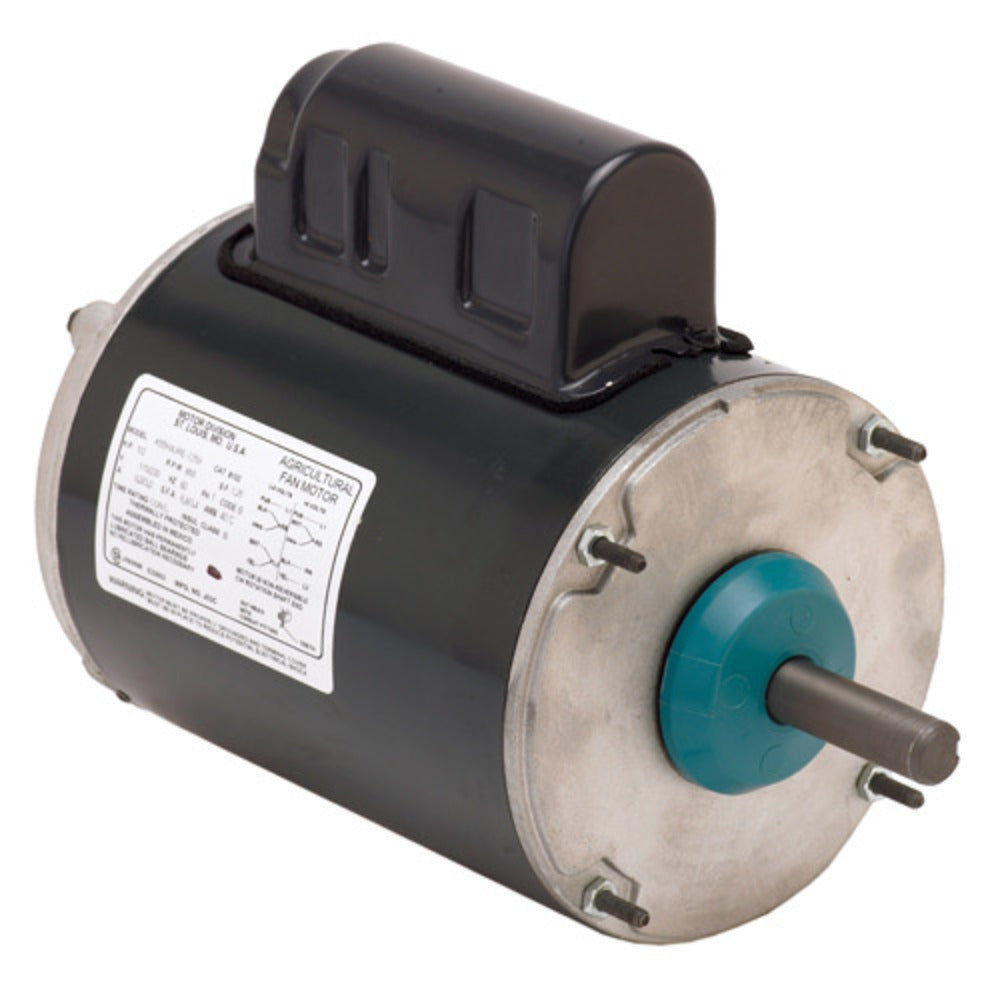

FD1CPA2JH US Motors 1 HP 1800 RPM 115/208-230V Agricultural Fan Motor

FD1CPA2JH US Motors 1 HP 1800 RPM 115/208-230V Agricultural Fan Motor

Agri Duty fan motor from US Motors / Nidec. Manufacturer specifications are taken from the 2026 US Motors catalog; PEMS data is used only where the catalog is silent.

Identifiers

• Manufacturer MPN: FD1CPA2JH
• Vendor ordering code: FD1CPA2JH
• UPC: 786382118341

Specifications

• Horsepower: 1 HP
• Nominal speed: 1800 RPM
• Rated / full-load speed: 1750 RPM
• Voltage: 115/208-230V
• Phase: Single phase
• Frame: 56H
• Enclosure: TEAO
• Mounting: Rigid base
• Rotation: Reversible
• Frequency: 50/60 Hz
• Full-load amperage: 9.0/4.5 A
• Service factor: 1.40
• Overload protection: Automatic reset
• Insulation: Class B
• Hazardous-location rating: Not applicable
• Catalog shipping weight: 40 lb

Fit and application check

Before ordering, compare the motor nameplate and verify horsepower, voltage, phase, frame, mounting, enclosure, rotation and shaft requirements. Installed or used electrical products cannot be returned.

Shipping

This product is vendor drop shipped. Freight is not included in the product price and must be confirmed for the delivery destination before the order is released.
