US Motors / Nidec

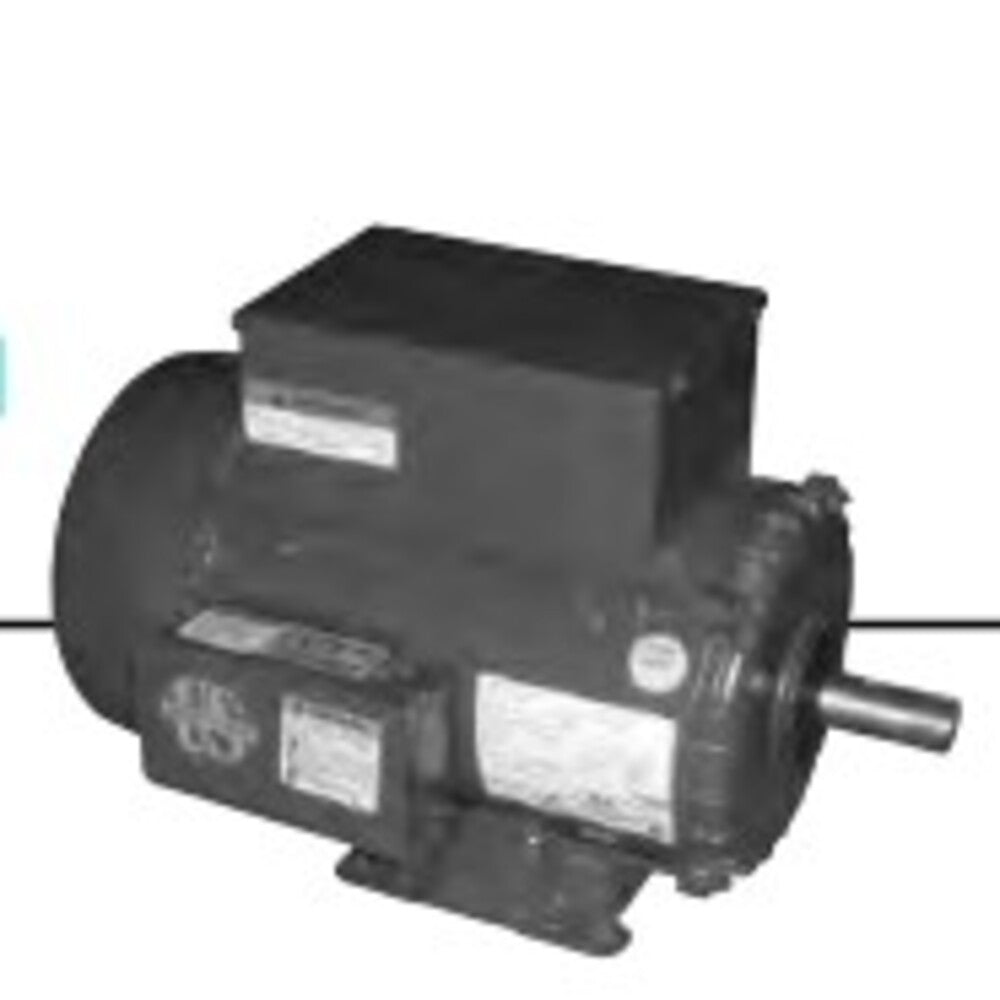

FD1CM2PHC US Motors / Nidec Farm Duty Motor - 1 HP - 1725 RPM - 115/230 V - TEFC
FD1CM2PHC US Motors / Nidec Farm Duty Motor - 1 HP - 1725 RPM - 115/230 V - TEFC
Regular price
$347.95 USD
Regular price
Sale price
$347.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
FD1CM2PHC is a new-in-box Farm Duty Motor from US Motors / Nidec. Designed for agricultural high-torque equipment.
Specifications
| Horsepower | 1 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 115/230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start |
| Full-Load Amps | 14.0/7.0 A |
| Service Factor | 1.15 |
| Overload Protection | Manual reset thermal protector |
| Duty Rating | Not available from manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Efficiency | 71.4 % |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 56HC |
| Enclosure | TEFC |
| Mounting | C-face with rigid base |
| Shaft Configuration | HC |
| Shaft Details | Manufacturer shaft code HC |
| Rotation | Reversible |
| Bearings | 6203 ball bearings, both ends |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Ship Weight | 35 lb |
| Country of Origin | MEX |
