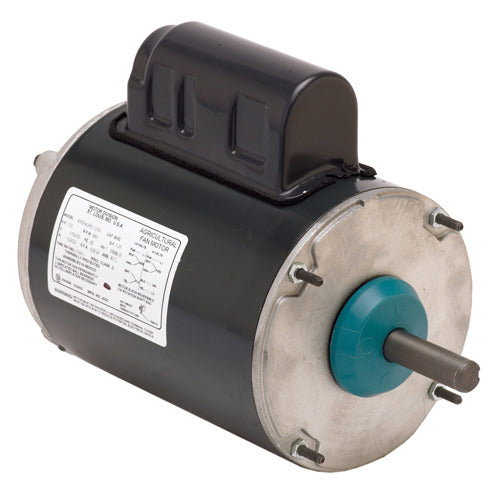

FD1CA2J US Motors / Nidec Farm Duty Motor - 1 HP - 1725 RPM - 115/208-230 V - TEAO
FD1CA2J US Motors / Nidec Farm Duty Motor - 1 HP - 1725 RPM - 115/208-230 V - TEAO
Regular price
$328.95 USD
Regular price
Sale price
$328.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
FD1CA2J is a new-in-box Farm Duty Motor from US Motors / Nidec. Designed for agricultural equipment requiring totally enclosed air-over cooling.
Specifications
| Horsepower | 1 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 115/208-230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start-Capacitor Run |
| Full-Load Amps | 10.9/5.4-5.4 A |
| Service Factor | 1.15 |
| Overload Protection | Automatic reset |
| Duty Rating | Not available from manufacturer |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | Not available from manufacturer |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 56 |
| Enclosure | TEAO |
| Mounting | Rigid base |
| Shaft Details | Not available from manufacturer |
| Rotation | CCW viewed from lead end; reversible |
| Bearings | 6203 ball bearings, both ends |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Ship Weight | 32 lb |
| Country of Origin | MEX |
