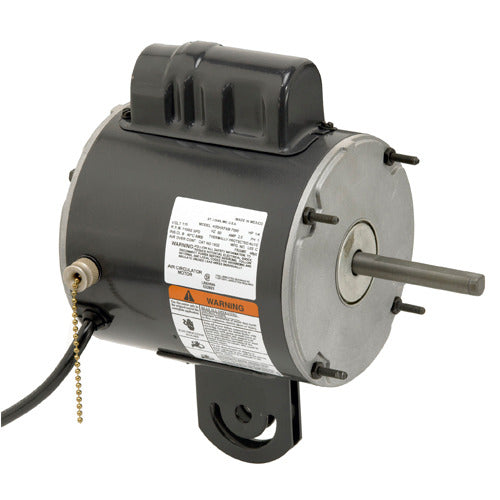

FD1AA4KCR US Motors / Nidec Poultry Fan Motor - 1 HP - 850 RPM - 230 V - TEAO
FD1AA4KCR US Motors / Nidec Poultry Fan Motor - 1 HP - 850 RPM - 230 V - TEAO
Regular price
$588.95 USD
Regular price
Sale price
$588.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
FD1AA4KCR is a new-in-box Poultry Fan Motor from US Motors / Nidec. Designed for poultry-house ventilation fan applications.
Specifications
| Horsepower | 1 HP |
|---|---|
| Nominal RPM | 900 RPM |
| Rated RPM | 850 RPM |
| Voltage | 230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | PSC |
| Full-Load Amps | 5.8 A |
| Service Factor | 1 |
| Overload Protection | Automatic Reset |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Speed Count | 1 |
| Frame | 56YZ |
| Enclosure | TEAO |
| Mounting | C-Face |
| Shaft Details | Manufacturer shaft code YZ |
| Rotation | CCW lead end |
| Bearings | BALL / BALL |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Ship Weight | 32 lb |
| Country of Origin | MEX |
