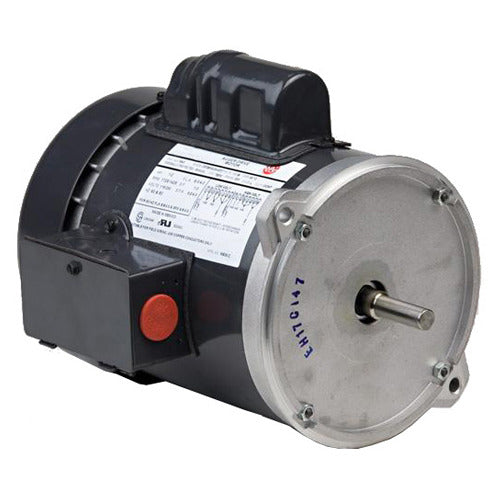

• FD12SM2DZYR US Motors / Nidec Auger Duty Motor - 1/2 HP - 1800 RPM - 190/380 & 208-230/460 V - TEFC
1 2

US Motors / Nidec

FD12SM2DZYR US Motors / Nidec Auger Duty Motor - 1/2 HP - 1800 RPM - 190/380 & 208-230/460 V - TEFC

FD12SM2DZYR US Motors / Nidec Auger Duty Motor - 1/2 HP - 1800 RPM - 190/380 & 208-230/460 V - TEFC

$359.95 USD
$359.95 USD
Sale Sold out
Shipping calculated at checkout.

FD12SM2DZYR is a new-in-box Auger Duty Motor from US Motors / Nidec. Designed for agriculture augers.

Specifications

Horsepower 1/2 HP
Nominal RPM 1800 RPM
Rated RPM 1800 RPM
Voltage 190/380 & 208-230/460 V
Phase Three Phase
Frequency 50/60 Hz
Electrical Type Three Phase
Full-Load Amps 2.2/1.1 & 2.0-2.0/1.0 A
Service Factor 1
Overload Protection Manual reset thermal overload protector
Duty Rating Continuous duty
Insulation Class B
Speed Count 1
Frame 56Y
Enclosure TEFC
Mounting Footless auger-duty mount
Shaft Configuration Keyed auger shaft with opposite-drive-end hand-crank extension
Rotation Reversible
Bearings Ball bearings
Material Rolled Steel
Motor Diameter 6.5 in
C Dimension 11.8 in
Length 11.8 in
Ship Weight 17 lb
Country of Origin MEX
View full details
