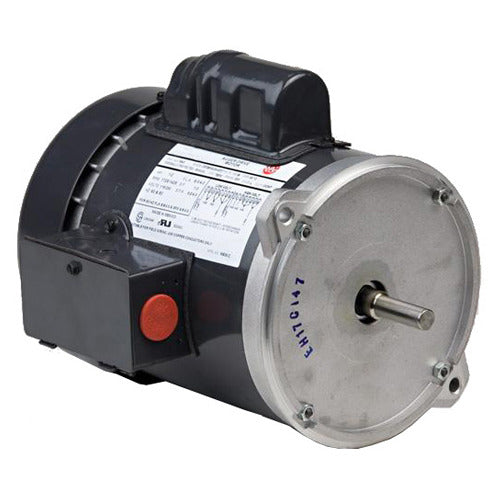

FD12CM2PZY US Motors / Nidec Auger Duty Motor - 1/2 HP - 1800 RPM - 115/230 V - TEFC
FD12CM2PZY US Motors / Nidec Auger Duty Motor - 1/2 HP - 1800 RPM - 115/230 V - TEFC
Regular price
$303.95 USD
Regular price
Sale price
$303.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
FD12CM2PZY is a new-in-box Auger Duty Motor from US Motors / Nidec. Designed for agriculture augers.
Specifications
| Horsepower | 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1800 RPM |
| Voltage | 115/230 V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Capacitor Start |
| Full-Load Amps | 8.0/4.0 & 9.6/4.8 A |
| Service Factor | 1 |
| Overload Protection | Manual reset thermal overload protector |
| Duty Rating | Continuous duty |
| Insulation Class | B |
| Speed Count | 1 |
| Frame | 56Y |
| Enclosure | TEFC |
| Mounting | Rigid base, footed |
| Shaft Configuration | Keyed auger shaft with opposite-drive-end hand-crank extension |
| Rotation | Reversible |
| Bearings | Ball bearings |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| C Dimension | 11.6 in |
| Length | 11.6 in |
| Ship Weight | 32 lb |
| Country of Origin | MEX |
