US Motors / Nidec

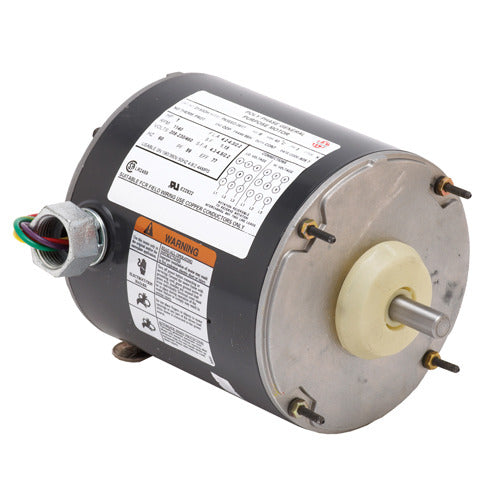

FD12AM2P4ZRS US Motors / Nidec Farm Duty Fan Motor - 1/2 HP - 1800 RPM - 115/230 V - TEAO
FD12AM2P4ZRS US Motors / Nidec Farm Duty Fan Motor - 1/2 HP - 1800 RPM - 115/230 V - TEAO
Regular price
$520.95 USD
Regular price
Sale price
$520.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
FD12AM2P4ZRS is a new-in-box Farm Duty Fan Motor from US Motors / Nidec. Designed for agriculture ventilation fans and hatcher/setter equipment.
Specifications
| Horsepower | 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1800 RPM |
| Voltage | 115/230 V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| Electrical Type | PSC |
| Full-Load Amps | 5.0/2.5 A |
| Service Factor | 1 |
| Overload Protection | Manual reset thermal overload protector |
| Duty Rating | Continuous air-over duty |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Speed Count | 1 |
| Frame | 48YZ |
| Enclosure | TEAO |
| Mounting | Hatcher/setter motor mount |
| Rotation | Reversible |
| Bearings | Ball bearings |
| Material | Rolled Steel |
| Motor Diameter | 5.6 in |
| C Dimension | 9.4 in |
| Length | 9.4 in |
| Ship Weight | 19 lb |
| Country of Origin | MEX |
