US Motors / Nidec

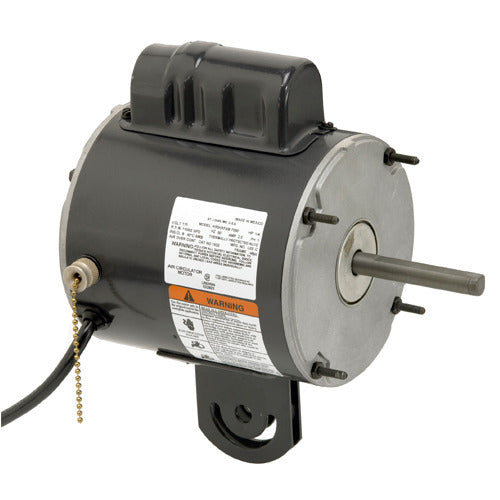

FD12AA4P US Motors / Nidec Farm Duty Fan Motor - 1/2 HP - 825 RPM - 115/230 V - TEAO
FD12AA4P US Motors / Nidec Farm Duty Fan Motor - 1/2 HP - 825 RPM - 115/230 V - TEAO
Regular price
$597.95 USD
Regular price
Sale price
$597.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
FD12AA4P is a new-in-box Farm Duty Fan Motor from US Motors / Nidec. Designed for direct-drive poultry and agriculture ventilation fans.
Specifications
| Horsepower | 1/2 HP |
|---|---|
| Nominal RPM | 900 RPM |
| Rated RPM | 825 RPM |
| Voltage | 115/230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Permanent Split Capacitor |
| Full-Load Amps | 6.4/3.2 A |
| Service Factor | 1 |
| Overload Protection | Automatic reset thermal overload protector |
| Duty Rating | Continuous air-over duty |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 67 % |
| Speed Count | 1 |
| Frame | 56Z |
| Enclosure | TEAO |
| Mounting | Rigid base |
| Rotation | Reversible |
| Bearings | Ball bearings |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Ship Weight | 35 lb |
| Country of Origin | MEX |
