• EZBN50 Us Motors/Nidec Pump 1.5 HP 115V 48Y Frame
1 2

US Motors / Nidec

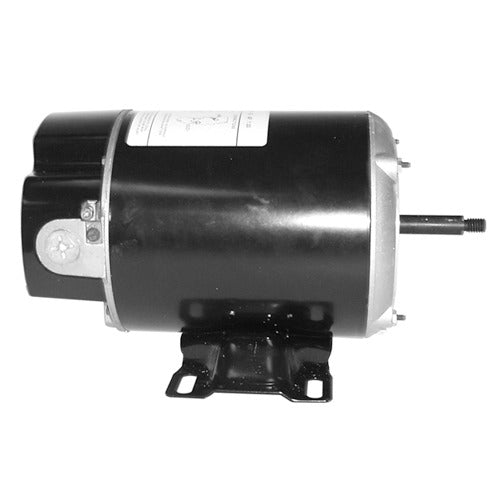

EZBN50 US Motors / Nidec Pool & Spa Motor - 1 1/2 HP - 3450 RPM - 115 V - ODP

EZBN50 US Motors / Nidec Pool & Spa Motor - 1 1/2 HP - 3450 RPM - 115 V - ODP

$360.95 USD
$360.95 USD
Sale Sold out
Shipping calculated at checkout.

EZBN50 is a new-in-box Pool & Spa Motor from US Motors / Nidec. Designed for pool and spa pumps.

Specifications

Horsepower 1 1/2 HP
Nominal RPM 3450 RPM
Rated RPM 3450 RPM
Voltage 115 V
Phase Single Phase
Frequency 60 Hz
Electrical Type Single Phase
Full-Load Amps 13.3/4.1 A
Service Factor 1
Overload Protection Thermally protected
Duty Rating Continuous duty
Ambient Rating 50 °C
Insulation Class B
Speed Count 2
Frame 48Y
Enclosure ODP
Mounting Thru-bolt mount with rigid base
Shaft Configuration Threaded pool pump shaft
Shaft Details 3/8-16 UNC-2A RH shaft thread
Rotation CCWSE
Bearings Sealed ball bearings
Material Rolled Steel
Motor Diameter 5.6 in
C Dimension 10.56 in
Length 10.56 in
Width 13 in
Height 13 in
Ship Weight 25 lb
Country of Origin MEX
View full details
