US Motors / Nidec

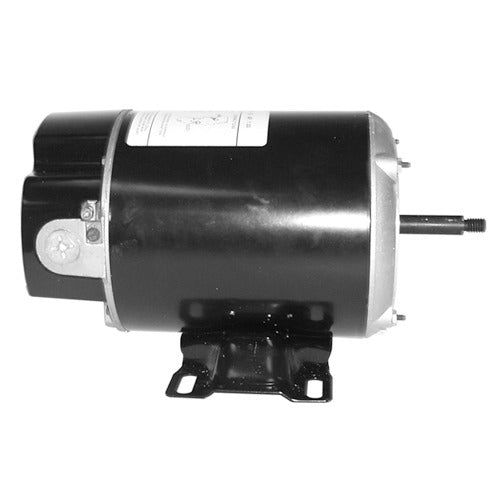

EZBN24 US Motors / Nidec Pool & Spa Motor - 3/4 HP - 3450 RPM - 115 V - ODP
EZBN24 US Motors / Nidec Pool & Spa Motor - 3/4 HP - 3450 RPM - 115 V - ODP
Regular price
$232.95 USD
Regular price
Sale price
$232.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
EZBN24 is a new-in-box Pool & Spa Motor from US Motors / Nidec. Designed for pool and spa pumps.
Specifications
| Horsepower | 3/4 HP |
|---|---|
| Nominal RPM | 3450 RPM |
| Rated RPM | 3450 RPM |
| Voltage | 115 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Single Phase |
| Full-Load Amps | 10 A |
| Service Factor | 1 |
| Overload Protection | Thermally protected |
| Duty Rating | Continuous duty |
| Ambient Rating | 50 °C |
| Insulation Class | B |
| Speed Count | 1 |
| Frame | 48Y |
| Enclosure | ODP |
| Mounting | Thru-bolt mount with rigid base |
| Shaft Configuration | Threaded pool pump shaft |
| Shaft Details | 3/8-16 UNC-2A RH shaft thread |
| Rotation | CCWSE |
| Bearings | Sealed ball bearings |
| Material | Rolled Steel |
| Motor Diameter | 5.6 in |
| C Dimension | 8.7 in |
| Length | 8.7 in |
| Width | 12 in |
| Height | 13 in |
| Ship Weight | 17 lb |
| Country of Origin | MEX |
