US Motors / Nidec

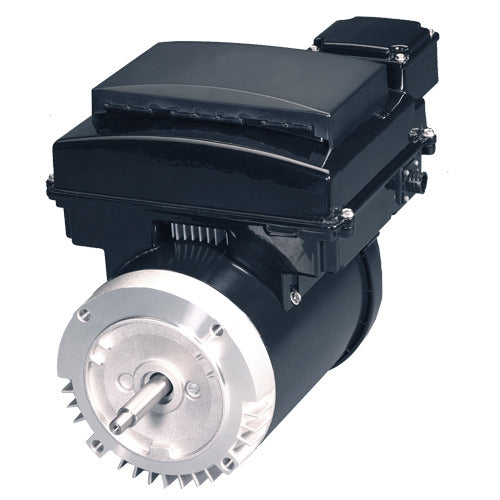

EVSJ15-NS US Motors / Nidec General Purpose Motor - 1 1/2 HP - 3450 RPM - 230 V - TEFC
EVSJ15-NS US Motors / Nidec General Purpose Motor - 1 1/2 HP - 3450 RPM - 230 V - TEFC
Regular price
$898.95 USD
Regular price
Sale price
$898.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
EVSJ15-NS is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for general-purpose industrial and commercial applications.
Specifications
| Horsepower | 1 1/2 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 3450 RPM |
| Voltage | 230 V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 10 A |
| Service Factor | 1.6 |
| Overload Protection | Electronically Protected |
| Ambient Rating | 50 °C |
| Insulation Class | B |
| Speed Count | 1 |
| Frame | 56J |
| Enclosure | TEFC |
| Mounting | C-Face |
| Shaft Details | Manufacturer shaft code J |
| Rotation | CCW drive end |
| Bearings | 6203 / 6304 |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Ship Weight | 43 lb |
