• EU2002 US Motors / Nidec Commercial Pump Motor - 2 HP - 3600 RPM - 115/208-230 V - ODP
1 2

US Motors / Nidec

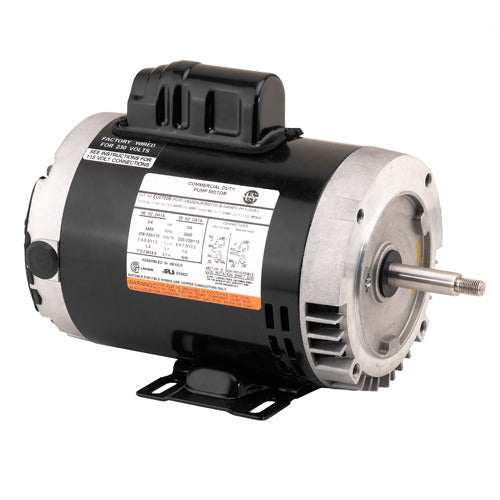

EU2002 US Motors / Nidec Commercial Pump Motor - 2 HP - 3600 RPM - 115/208-230 V - ODP

EU2002 US Motors / Nidec Commercial Pump Motor - 2 HP - 3600 RPM - 115/208-230 V - ODP

$677.95 USD
$677.95 USD
Sale Sold out
Shipping calculated at checkout.

EU2002 is a new-in-box Commercial Pump Motor from US Motors / Nidec. Designed for chiller, condensate, HVAC-duty, booster, irrigation, washing, watering, and de-watering pumps.

Specifications

Horsepower 2 HP
Nominal RPM 3600 RPM
Rated RPM 3600 RPM
Voltage 115/208-230 V
Phase Single Phase
Frequency 50/60 Hz
Electrical Type Single Phase
Full-Load Amps 22.2/12.2-11.1 A
Service Factor 1.2
Overload Protection Automatic reset thermal overload protector
Duty Rating Continuous duty
Ambient Rating 40 °C
Insulation Class B
Speed Count 1
Frame 56J
Enclosure ODP
Mounting C-face without base
Shaft Configuration 56J C-face threaded pump shaft
Shaft Details 7/16-20 UNC-2A shaft thread; stainless-steel shaft extension
Rotation Reversible
Bearings Double-sealed ball bearings
Material Rolled Steel
Motor Diameter 6.5 in
C Dimension 12.9 in
Length 12.9 in
Width 16 in
Height 12 in
Ship Weight 32 lb
Country of Origin MEX
