US Motors / Nidec
EU12 US Motors / Nidec Commercial Pump Motor - 3 HP - 3600 RPM - 208-230 V - TEFC
EU12 US Motors / Nidec Commercial Pump Motor - 3 HP - 3600 RPM - 208-230 V - TEFC
Regular price
$977.95 USD
Regular price
Sale price
$977.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

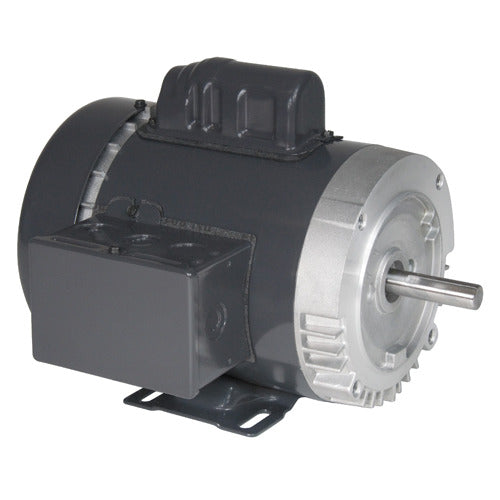

EU12 is a new-in-box Commercial Pump Motor from US Motors / Nidec. Designed for chiller, condensate, HVAC-duty, booster, irrigation, washing, watering, and de-watering pumps.
Specifications
| Horsepower | 3 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3600 RPM |
| Voltage | 208-230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start, Induction Run |
| Full-Load Amps | 15.8-14.6 A |
| Service Factor | 1.15 |
| Overload Protection | Automatic reset thermal overload protector |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 87.9 % |
| Speed Count | 1 |
| Frame | 56J |
| Enclosure | TEFC |
| Mounting | C-face with removable base |
| Shaft Configuration | 56J C-face threaded pump shaft |
| Shaft Details | 7/16-20 UNC-2A shaft thread; stainless-steel shaft extension |
| Rotation | Reversible |
| Bearings | Double-sealed ball bearings |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| C Dimension | 13.9 in |
| Length | 13.9 in |
| Ship Weight | 17 lb |
| Country of Origin | MEX |
