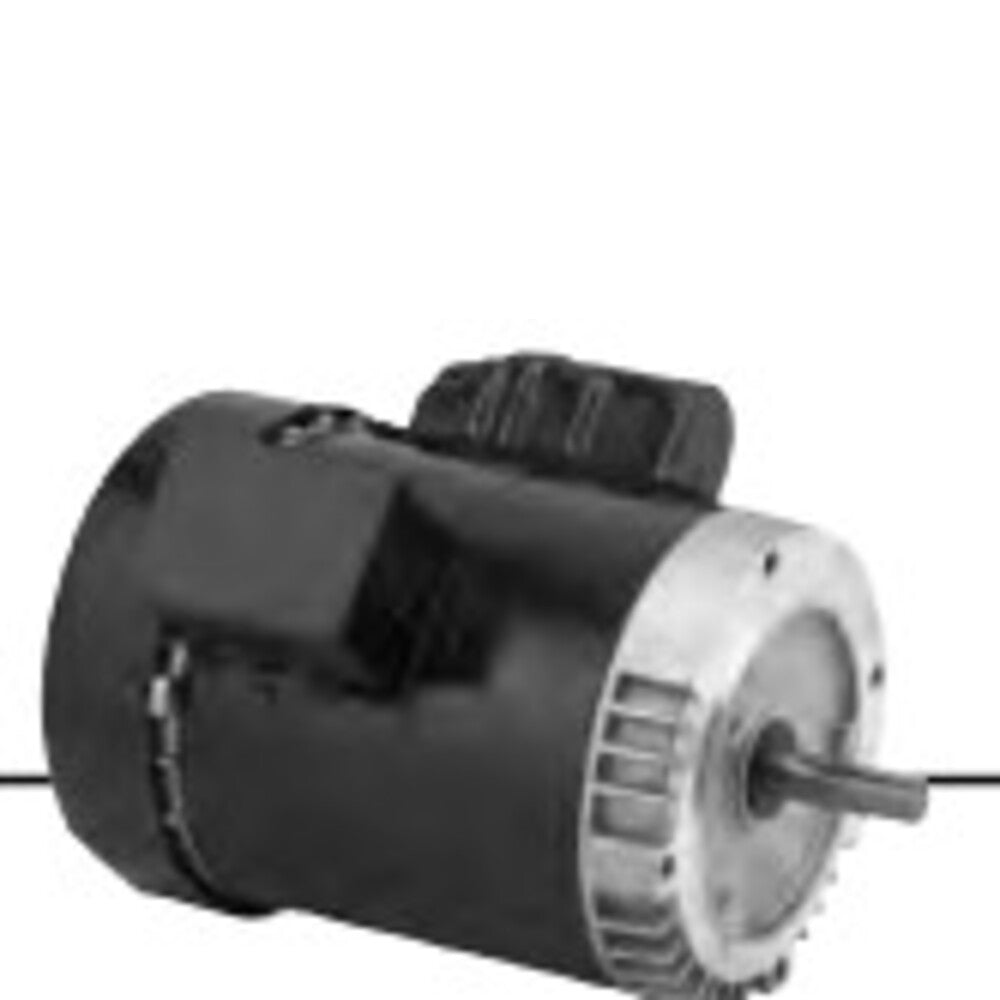

EU08 US Motors / Nidec Commercial Pump Motor - 1 HP - 1725 RPM - 115/208-230 V - TEFC
EU08 US Motors / Nidec Commercial Pump Motor - 1 HP - 1725 RPM - 115/208-230 V - TEFC
Regular price
$581.95 USD
Regular price
Sale price
$581.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
EU08 is a new-in-box Commercial Pump Motor from US Motors / Nidec. Designed for chiller, condensate, HVACR, and other commercial-duty pump service.
Specifications
| Horsepower | 1 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1725 RPM |
| Voltage | 115/208-230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start |
| Full-Load Amps | 11.2/6.1-5.7 A |
| Service Factor | 1.15 |
| Overload Protection | Automatic reset |
| Duty Rating | Continuous |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 56J |
| Enclosure | TEFC |
| Mounting | J-face with removable base |
| Shaft Configuration | J |
| Shaft Details | 5/8 in keyed shaft with threaded tip; manufacturer shaft code J |
| Rotation | Reversible |
| Bearings | Ball |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Ship Weight | 35 lb |
