• EU07 US Motors / Nidec Commercial Pump Motor - 1 HP - 3450 at 60 Hz; 2850 at 50 Hz RPM - 115/208-230 V - TEFC
1 2

US Motors / Nidec

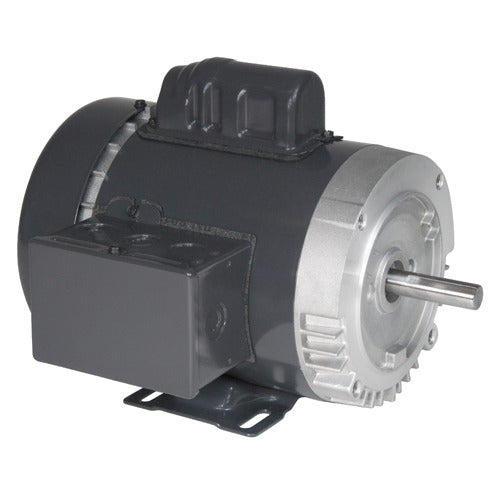

EU07 US Motors / Nidec Commercial Pump Motor - 1 HP - 3450 at 60 Hz; 2850 at 50 Hz RPM - 115/208-230 V - TEFC

EU07 US Motors / Nidec Commercial Pump Motor - 1 HP - 3450 at 60 Hz; 2850 at 50 Hz RPM - 115/208-230 V - TEFC

$552.95 USD
$552.95 USD
Sale Sold out
Shipping calculated at checkout.

EU07 is a new-in-box Commercial Pump Motor from US Motors / Nidec. Designed for commercial pump and direct-coupled pump service.

Specifications

Horsepower 1 HP
Nominal RPM 3600/3000 RPM
Rated RPM 3450 at 60 Hz; 2850 at 50 Hz RPM
Voltage 115/208-230 V
Phase Single Phase
Frequency 60/50 Hz
Electrical Type Capacitor Start
Full-Load Amps 12.8/6.6-6.4 A
Service Factor Not available from manufacturer
Overload Protection Automatic reset
Duty Rating Not available from manufacturer
Ambient Rating 40 °C
Insulation Class B
Efficiency Not available from manufacturer
Hazardous Location Rating Not applicable
Speed Count 1
Frame 56J
Enclosure TEFC
Mounting J-face with removable base
Shaft Configuration J
Shaft Details Manufacturer shaft code J
Rotation CW viewed from lead end
Bearings 6203 ball bearings, both ends
Material Rolled Steel
Motor Diameter 6.5 in
Length 24 in
Width 13 in
Height 12 in
Ship Weight 33 lb
Country of Origin MEX
