US Motors / Nidec

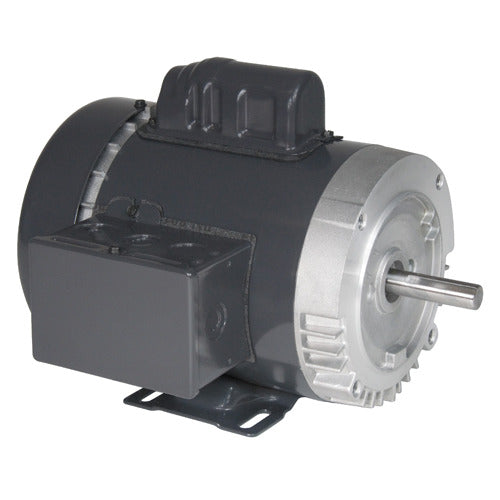

EU02 US Motors / Nidec Commercial Pump Motor - 1/3 HP - 1800 RPM - 115/208-230 V - TEFC
EU02 US Motors / Nidec Commercial Pump Motor - 1/3 HP - 1800 RPM - 115/208-230 V - TEFC
Regular price
$343.95 USD
Regular price
Sale price
$343.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
EU02 is a new-in-box Commercial Pump Motor from US Motors / Nidec. Designed for chiller, condensate, HVAC-duty, booster, irrigation, washing, watering, and de-watering pumps.
Specifications
| Horsepower | 1/3 HP |
|---|---|
| Nominal RPM | 1800 RPM |
| Rated RPM | 1800 RPM |
| Voltage | 115/208-230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start, Induction Run |
| Full-Load Amps | 7.2/3.4-3.6 A |
| Service Factor | 1.15 |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Efficiency | 61.4 % |
| Speed Count | 1 |
| Frame | 56J |
| Enclosure | TEFC |
| Mounting | C-face with removable base |
| Shaft Configuration | 56J C-face threaded pump shaft |
| Shaft Details | 7/16-20 UNC-2A shaft thread; stainless-steel shaft extension |
| Rotation | Reversible |
| Bearings | Double-sealed ball bearings |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| C Dimension | 11.1 in |
| Length | 11.1 in |
| Ship Weight | 24 lb |
| Country of Origin | MEX |
