US Motors / Nidec

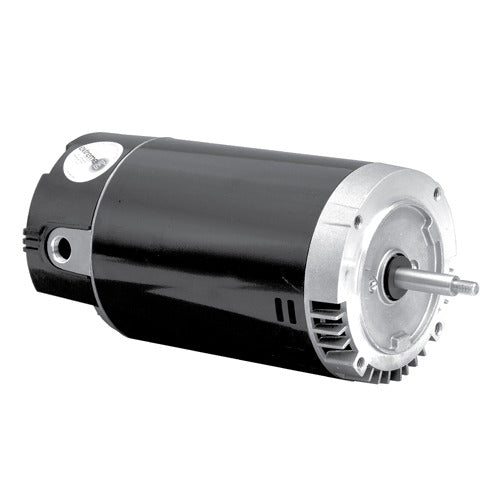

ESN1302 US Motors / Nidec Pool & Spa Motor - 3 HP - 3450 RPM - 208-230 V - ODP
ESN1302 US Motors / Nidec Pool & Spa Motor - 3 HP - 3450 RPM - 208-230 V - ODP
Regular price
$808.95 USD
Regular price
Sale price
$808.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
ESN1302 is a new-in-box Pool & Spa Motor from US Motors / Nidec. Designed for pool and spa pumps.
Specifications
| Horsepower | 3 HP |
|---|---|
| Nominal RPM | 3450 RPM |
| Rated RPM | 3450 RPM |
| Voltage | 208-230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Single Phase |
| Full-Load Amps | 20.6-19.0 A |
| Service Factor | 1.6 |
| Overload Protection | Thermally protected |
| Duty Rating | Continuous duty |
| Ambient Rating | 50 °C |
| Insulation Class | B |
| Speed Count | 1 |
| Frame | 56J |
| Enclosure | ODP |
| Mounting | C-flange pool-pump mount |
| Shaft Configuration | Threaded stainless-steel pool-pump shaft |
| Rotation | CCWSE |
| Bearings | Ball |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| C Dimension | 14.01 in |
| Length | 14.01 in |
| Ship Weight | 35 lb |
| Country of Origin | MEX |
