US Motors / Nidec

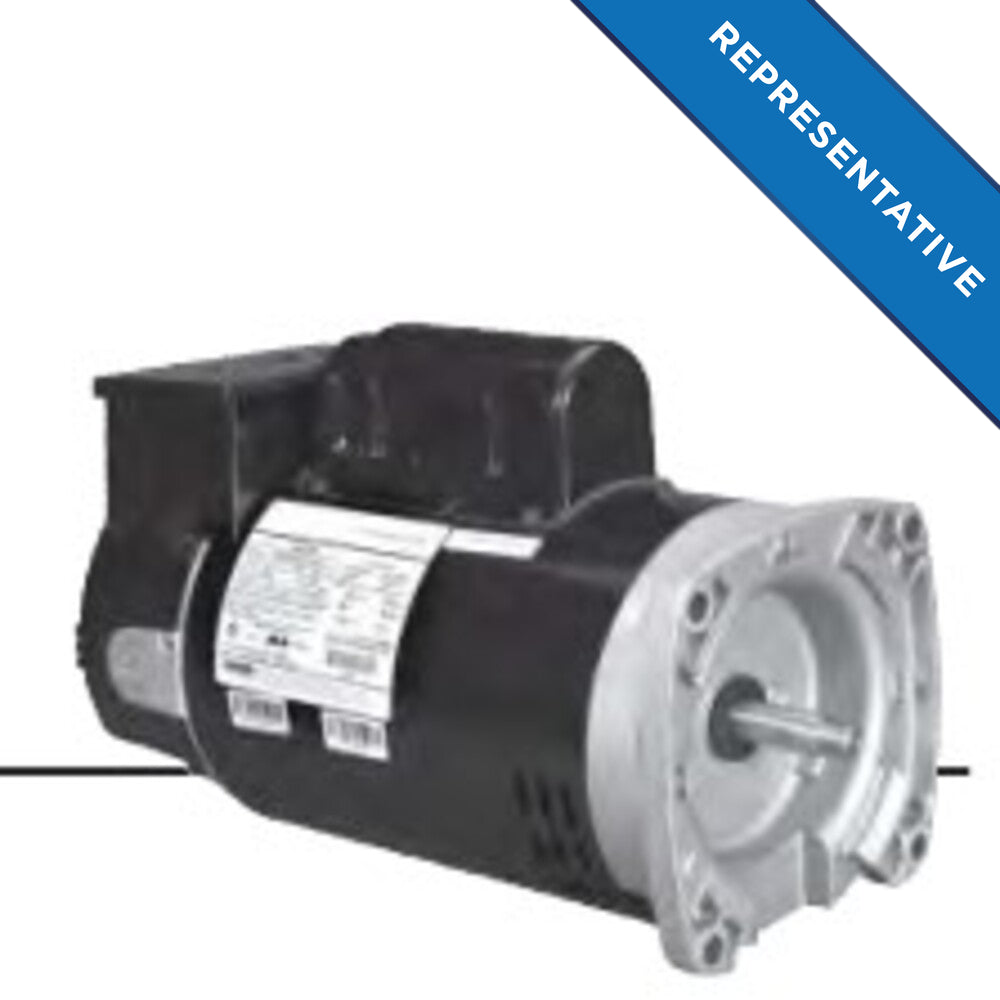

EH704 US Motors / Nidec Pool & Spa Motor - 2 HP - 3450 RPM - 208-230/460 V - ODP
EH704 US Motors / Nidec Pool & Spa Motor - 2 HP - 3450 RPM - 208-230/460 V - ODP
Regular price
$523.95 USD
Regular price
Sale price
$523.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
EH704 is a new-in-box Pool & Spa Motor from US Motors / Nidec. Designed for pool and spa pumps.
Specifications
| Horsepower | 2 HP |
|---|---|
| Nominal RPM | 3450 RPM |
| Rated RPM | 3450 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 6.6-6.4/3.2 A |
| Service Factor | 1.2 |
| Duty Rating | Continuous duty |
| Insulation Class | B |
| Speed Count | 1 |
| Frame | 56C |
| Enclosure | ODP |
| Mounting | C-face pool-pump mount |
| Shaft Configuration | Keyed pool-pump shaft |
| Rotation | Reversible |
| Bearings | Ball |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| C Dimension | 9.82 in |
| Length | 9.82 in |
| Ship Weight | 32 lb |
| Country of Origin | MEX |
