• EH637 US Motors / Nidec Pool & Spa Motor - 2 HP - 3450 RPM - 208-230/460 V - ODP
1 1

US Motors / Nidec

EH637 US Motors / Nidec Pool & Spa Motor - 2 HP - 3450 RPM - 208-230/460 V - ODP

EH637 US Motors / Nidec Pool & Spa Motor - 2 HP - 3450 RPM - 208-230/460 V - ODP

$639.95 USD
$639.95 USD
Sale Sold out
Shipping calculated at checkout.

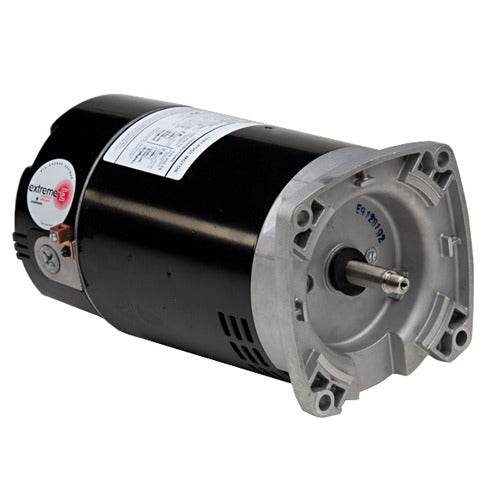

EH637 is a new-in-box Pool & Spa Motor from US Motors / Nidec. Designed for pool and spa pumps.

Specifications

Horsepower 2 HP
Nominal RPM 3450 RPM
Rated RPM 3450 RPM
Voltage 208-230/460 V
Phase Three Phase
Frequency 60 Hz
Electrical Type Three Phase
Full-Load Amps 7.0-6.6/3.3 A
Service Factor 1.3
Duty Rating Continuous duty
Insulation Class B
Speed Count 1
Frame 56Y
Enclosure ODP
Mounting Square-flange pool-pump mount
Shaft Configuration Threaded pool-pump shaft
Rotation Reversible
Bearings Ball
Material Rolled Steel
Motor Diameter 6.5 in
C Dimension 11.02 in
Length 11.02 in
Width 15 in
Height 11 in
Ship Weight 33 lb
Country of Origin MEX
