• EH635 US Motors / Nidec Pool & Spa Motor - 1 HP - 3450 RPM - 208-230/460 V - ODP
1 1

US Motors / Nidec

EH635 US Motors / Nidec Pool & Spa Motor - 1 HP - 3450 RPM - 208-230/460 V - ODP

EH635 US Motors / Nidec Pool & Spa Motor - 1 HP - 3450 RPM - 208-230/460 V - ODP

$416.95 USD
$416.95 USD
Sale Sold out
Shipping calculated at checkout.

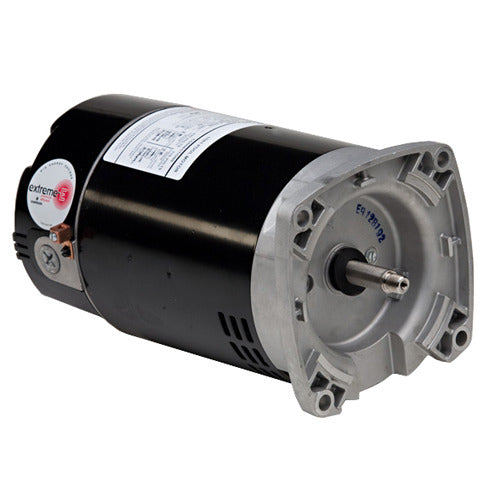

EH635 is a new-in-box Pool & Spa Motor from US Motors / Nidec. Designed for pool and spa pumps.

Specifications

Horsepower 1 HP
Nominal RPM 3450 RPM
Rated RPM 3450 RPM
Voltage 208-230/460 V
Phase Three Phase
Frequency 60 Hz
Electrical Type Three Phase
Full-Load Amps 4.8-4.6/2.3 A
Service Factor 1.65
Duty Rating Continuous duty
Insulation Class B
Speed Count 1
Frame 56Y
Enclosure ODP
Mounting Square-flange pool-pump mount
Shaft Configuration Threaded pool-pump shaft
Rotation Reversible
Bearings Ball
Material Rolled Steel
Motor Diameter 6.5 in
C Dimension 10.27 in
Length 10.27 in
Ship Weight 25 lb
Country of Origin MEX
