US Motors / Nidec

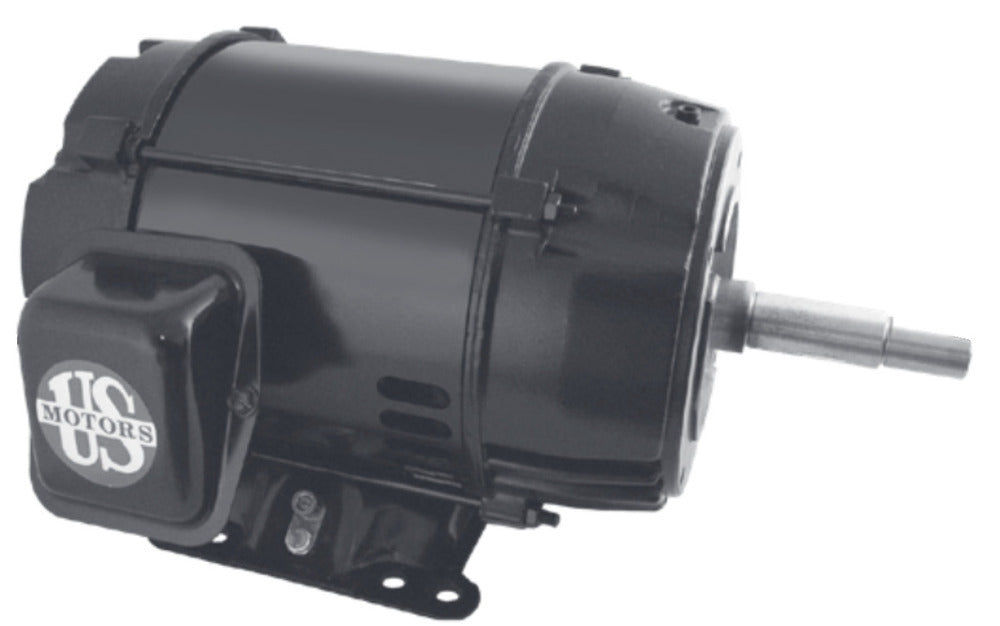

EEQK500 US Motors / Nidec Close Coupled Pump Motor - 5 HP - 3515 RPM - 208-230/460 V - ODP
EEQK500 US Motors / Nidec Close Coupled Pump Motor - 5 HP - 3515 RPM - 208-230/460 V - ODP
Regular price
$960.95 USD
Regular price
Sale price
$960.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
EEQK500 is a new-in-box Close Coupled Pump Motor from US Motors / Nidec. Designed for pentair EQ Series close-coupled pool pumps.
Specifications
| Horsepower | 5 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3515 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 1.15 A |
| Service Factor | 1.15 |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Speed Count | 1 |
| Frame | 182JMZ |
| Enclosure | ODP |
| Mounting | Rigid base with special JMZ close-coupled pump mount |
| Shaft Configuration | 300-series stainless-steel JMZ pump shaft |
| Rotation | Reversible |
| Bearings | Permanently lubricated ball bearings |
| Material | Rolled Steel |
| Length | 23 in |
| Width | 15 in |
| Height | 15 in |
| Ship Weight | 70 lb |
| Country of Origin | MEX |
