US Motors / Nidec

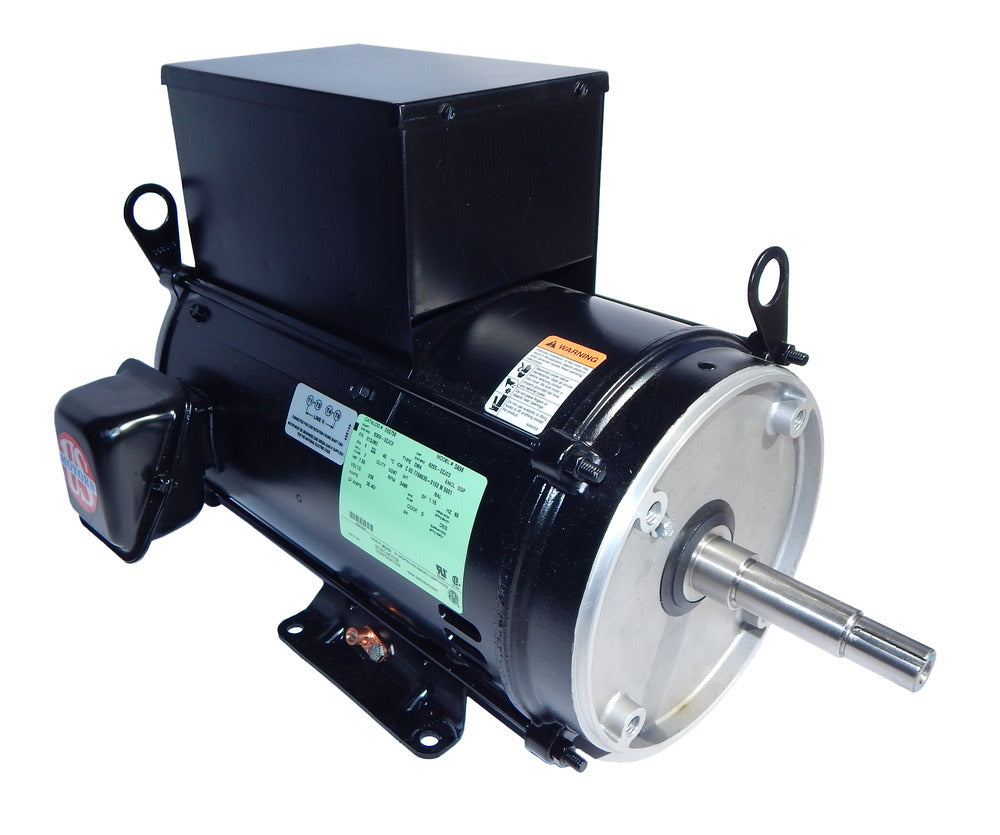

EEQ750 US Motors / Nidec Close Coupled Pump Motor - 7 1/2 HP - 3480 RPM - 230 V - ODP
EEQ750 US Motors / Nidec Close Coupled Pump Motor - 7 1/2 HP - 3480 RPM - 230 V - ODP
Regular price
$2,407.95 USD
Regular price
Sale price
$2,407.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
EEQ750 is a new-in-box Close Coupled Pump Motor from US Motors / Nidec. Designed for pentair EQ Series close-coupled pool pumps.
Specifications
| Horsepower | 7 1/2 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3480 RPM |
| Voltage | 230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Single Phase |
| Full-Load Amps | 1.15 A |
| Service Factor | 1.15 |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Speed Count | 1 |
| Frame | 213JMZ |
| Enclosure | ODP |
| Mounting | Rigid base with special JMZ close-coupled pump mount |
| Shaft Configuration | 300-series stainless-steel JMZ pump shaft |
| Rotation | Reversible |
| Bearings | Permanently lubricated ball bearings |
| Material | Rolled Steel |
| Length | 15 in |
| Width | 38 in |
| Height | 20 in |
| Ship Weight | 140 lb |
| Country of Origin | MEX |
