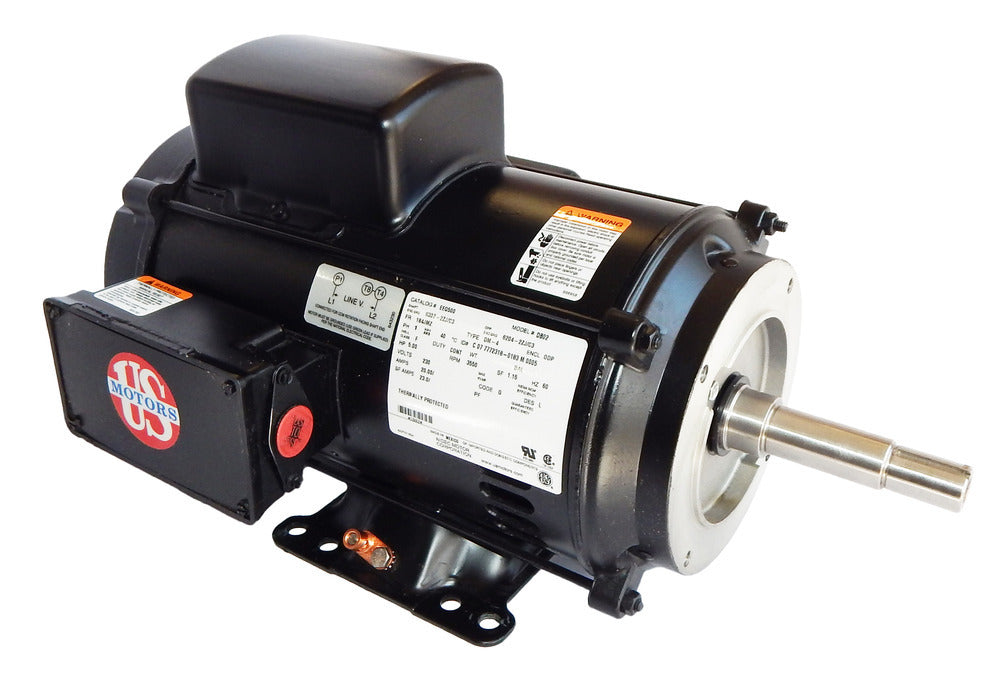

EEQ500 US Motors / Nidec Close Coupled Pump Motor - 5 HP - 3550 RPM - 230 V - ODP
EEQ500 US Motors / Nidec Close Coupled Pump Motor - 5 HP - 3550 RPM - 230 V - ODP
Regular price
$1,222.95 USD
Regular price
Sale price
$1,222.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
EEQ500 is a new-in-box Close Coupled Pump Motor from US Motors / Nidec. Designed for pentair EQ Series close-coupled pool pumps.
Specifications
| Horsepower | 5 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3550 RPM |
| Voltage | 230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Single Phase |
| Full-Load Amps | 1.15 A |
| Service Factor | 1.15 |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Speed Count | 1 |
| Frame | 184JMZ |
| Enclosure | ODP |
| Mounting | Rigid base with special JMZ close-coupled pump mount |
| Shaft Configuration | 300-series stainless-steel JMZ pump shaft |
| Rotation | Reversible |
| Bearings | Permanently lubricated ball bearings |
| Material | Rolled Steel |
| Length | 41 in |
| Width | 30 in |
| Height | 19 in |
| Ship Weight | 78 lb |
| Country of Origin | MEX |
