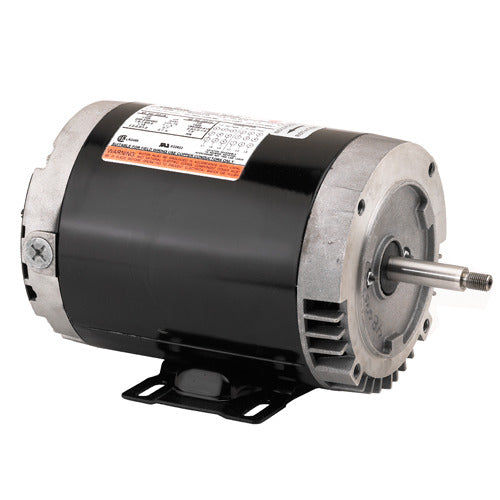

EE734 US Motors / Nidec Commercial Pump Motor - 3 HP - 3600 RPM - 208-230/460 V - ODP
EE734 US Motors / Nidec Commercial Pump Motor - 3 HP - 3600 RPM - 208-230/460 V - ODP
Regular price
$843.95 USD
Regular price
Sale price
$843.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
EE734 is a new-in-box Commercial Pump Motor from US Motors / Nidec. Designed for chiller, condensate, HVAC-duty, booster, irrigation, washing, watering, and de-watering pumps.
Specifications
| Horsepower | 3 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3600 RPM |
| Voltage | 208-230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three Phase |
| Full-Load Amps | 9.6-9.4/4.7 A |
| Service Factor | 1.15 |
| Duty Rating | Continuous duty |
| Ambient Rating | 40 °C |
| Efficiency | 89.79 % |
| Speed Count | 1 |
| Frame | 56J |
| Enclosure | ODP |
| Mounting | C-face without base |
| Shaft Configuration | 56J C-face threaded pump shaft |
| Shaft Details | 7/16-20 UNC-2A shaft thread; stainless-steel shaft extension |
| Rotation | CCWSE |
| Bearings | Double-sealed ball bearings |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| C Dimension | 13.9 in |
| Length | 13.9 in |
| Ship Weight | 37 lb |
| Country of Origin | MEX |
