• EE706 US Motors / Nidec Commercial Pump Motor - 2 HP - 3600 RPM - 208-230/460 V - TEFC
1 1

US Motors / Nidec

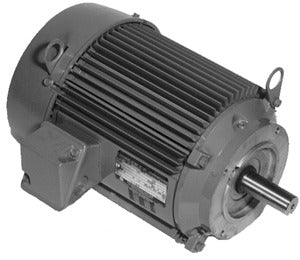

EE706 US Motors / Nidec Commercial Pump Motor - 2 HP - 3600 RPM - 208-230/460 V - TEFC

EE706 US Motors / Nidec Commercial Pump Motor - 2 HP - 3600 RPM - 208-230/460 V - TEFC

$458.95 USD
$458.95 USD
Sale Sold out
Shipping calculated at checkout.

EE706 is a new-in-box Commercial Pump Motor from US Motors / Nidec. Designed for chiller, condensate, HVAC-duty, booster, irrigation, washing, watering, and de-watering pumps.

Specifications

Horsepower 2 HP
Nominal RPM 3600 RPM
Rated RPM 3600 RPM
Voltage 208-230/460 V
Phase Three Phase
Frequency 50/60 Hz
Electrical Type Three Phase
Full-Load Amps 6.6-6.1/3.1 A
Service Factor 1.25
Duty Rating Continuous duty
Ambient Rating 40 °C
Efficiency 85.5 %
Speed Count 1
Frame 56J
Enclosure TEFC
Mounting C-face without base
Shaft Configuration 56J C-face threaded pump shaft
Shaft Details 7/16-20 UNC-2A shaft thread; stainless-steel shaft extension
Rotation CCWSE
Bearings Double-sealed ball bearings
Material Rolled Steel
Motor Diameter 6.5 in
C Dimension 13.4 in
Length 13.4 in
Width 19 in
Height 13 in
Ship Weight 36 lb
Country of Origin MEX
