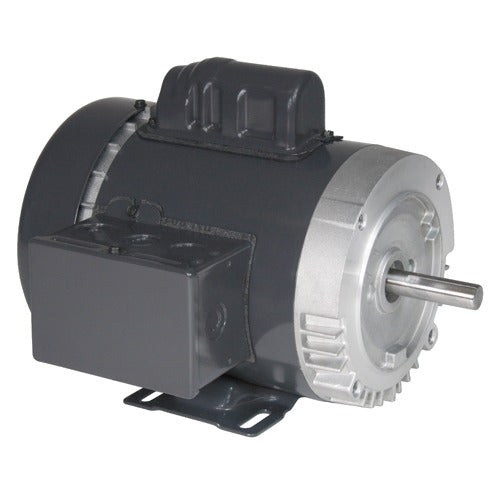

EC16B US Motors / Nidec General Purpose Motor - 3 HP - 3450 RPM - 208-230 V - TEFC
EC16B US Motors / Nidec General Purpose Motor - 3 HP - 3450 RPM - 208-230 V - TEFC
Regular price
$677.95 USD
Regular price
Sale price
$677.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
EC16B is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for general-purpose industrial and commercial applications.
Specifications
| Horsepower | 3 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3450 RPM |
| Voltage | 208-230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Capacitor Start |
| Full-Load Amps | 13.7-13.0 A |
| Service Factor | 1.15 |
| Overload Protection | Automatic Reset |
| Ambient Rating | 40 °C |
| Insulation Class | F |
| Speed Count | 1 |
| Frame | 56 |
| Enclosure | TEFC |
| Mounting | C-Face / Rigid Base |
| Shaft Details | Manufacturer shaft code C |
| Rotation | CCW drive end; reversible |
| Bearings | 6203 / 6203 |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Ship Weight | 39 lb |
| Country of Origin | MEX |
