US Motors / Nidec
EC0502 US Motors / Nidec General Purpose Motor - 1/2 HP - 3450 RPM - 115/208-230 & 110/220 V - ODP
EC0502 US Motors / Nidec General Purpose Motor - 1/2 HP - 3450 RPM - 115/208-230 & 110/220 V - ODP
Regular price
$333.95 USD
Regular price
Sale price
$333.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

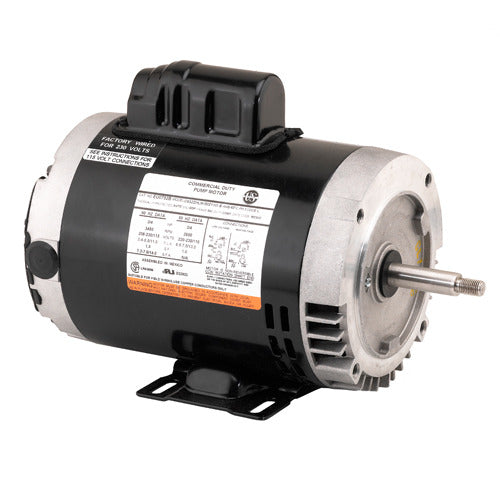

EC0502 is a new-in-box General Purpose Motor from US Motors / Nidec. Designed for general-purpose industrial and commercial applications.
Specifications
| Horsepower | 1/2 HP |
|---|---|
| Nominal RPM | 3600 RPM |
| Rated RPM | 3450 RPM |
| Voltage | 115/208-230 & 110/220 V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| Electrical Type | Capacitor Start |
| Full-Load Amps | 8.2/4.2-4.1//9.8/4.9-5.2 A |
| Service Factor | 1.6 |
| Overload Protection | Automatic Reset |
| Ambient Rating | 40 °C |
| Insulation Class | B |
| Speed Count | 1 |
| Frame | 56 |
| Enclosure | ODP |
| Mounting | C-Face |
| Shaft Details | Manufacturer shaft code C |
| Rotation | CCW drive end; reversible |
| Bearings | BALL / BALL |
| Material | Rolled Steel |
| Motor Diameter | 6.5 in |
| Ship Weight | 22 lb |
| Country of Origin | MEX |
