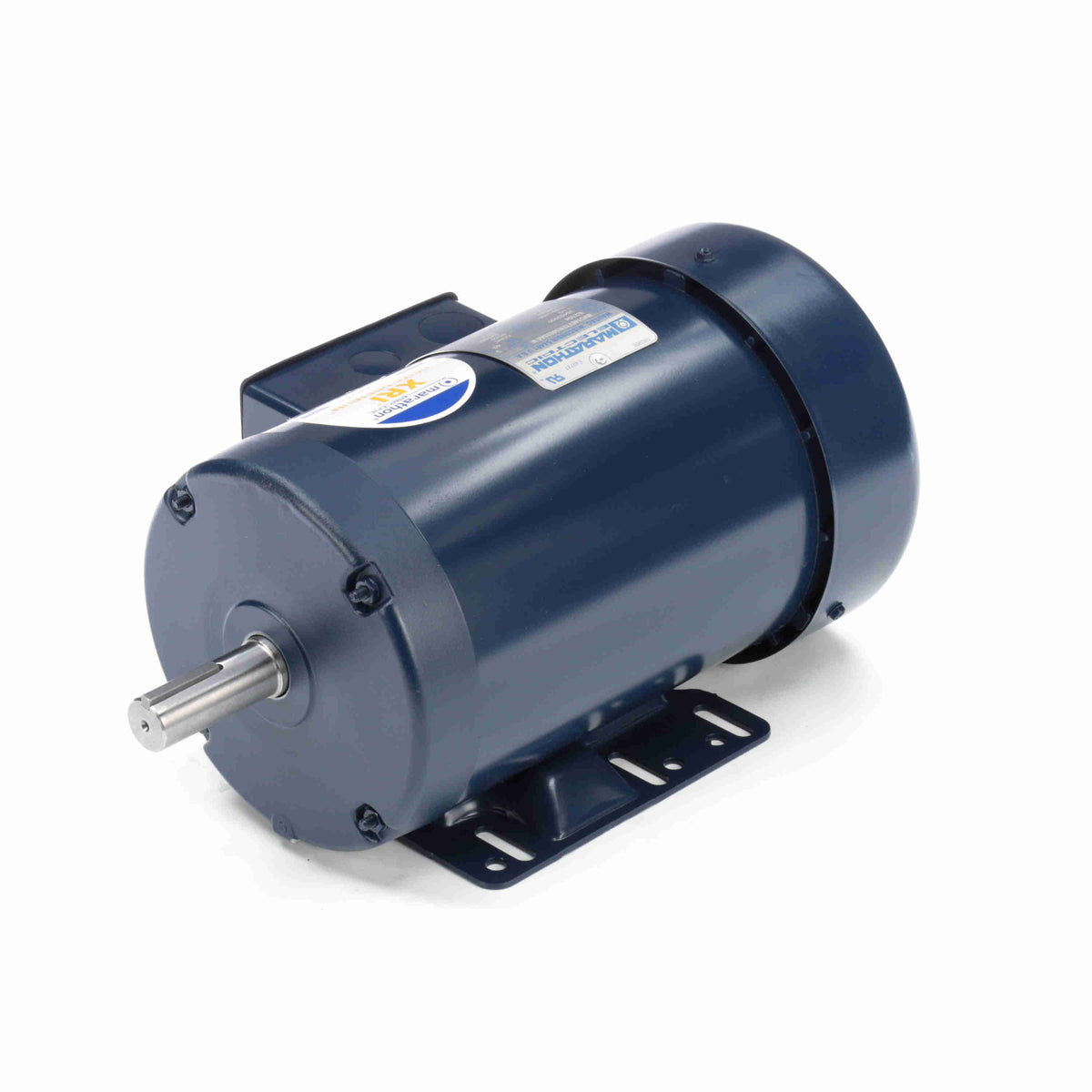

E2104 Marathon General Purpose Motor - 1 1/2 HP - 1750 RPM - 230/460 V - TEFC
E2104 Marathon General Purpose Motor - 1 1/2 HP - 1750 RPM - 230/460 V - TEFC
Regular price
$642.95 USD
Regular price
Sale price
$642.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
E2104 is a new-in-box General Purpose Motor from Marathon. Designed for general purpose applications.
Identifiers
| Manufacturer Catalog Number | E2104 |
|---|---|
| Manufacturer Model | 145TTFR16033 |
| Stu's / Vendor SKU | ME2104 |
Specifications
| Horsepower | 1 1/2 HP |
|---|---|
| Alternate Horsepower | Not available from manufacturer |
| Watts | Not available from manufacturer |
| kW | Not available from manufacturer |
| Nominal RPM | 1800 RPM |
| Rated RPM | 1750 RPM |
| Voltage | 230/460 V |
| Secondary Voltage | Not available from manufacturer |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Not available from manufacturer |
| Full-Load Amps | 4.8/2.4 A |
| Service Factor | Not available from manufacturer |
| Overload Protection | Not available from manufacturer |
| Duty Rating | Not available from manufacturer |
| Ambient Rating | Not available from manufacturer |
| Insulation Class | Not available from manufacturer |
| Efficiency | 86.5 % |
| Hazardous Location Rating | Not applicable |
| Speed Count | 1 |
| Frame | 145T |
| Enclosure | TEFC |
| Mounting | Not available from manufacturer |
| Shaft Configuration | Not available from manufacturer |
| Shaft Details | Not available from manufacturer |
| Rotation | Not available from manufacturer |
| Bearings | Not available from manufacturer |
| Material | Not available from manufacturer |
| Motor Diameter | Not available from manufacturer |
| C Dimension | 13.75 in |
| Length | Not available from manufacturer |
| Width | Not available from manufacturer |
| Height | Not available from manufacturer |
| Ship Weight | 34 lb |
| Country of Origin | Not available from manufacturer |
Core listing values were checked against the exact Marathon manufacturer source used for this cleanup. Fields shown as unavailable were not published in the source used.
