Century

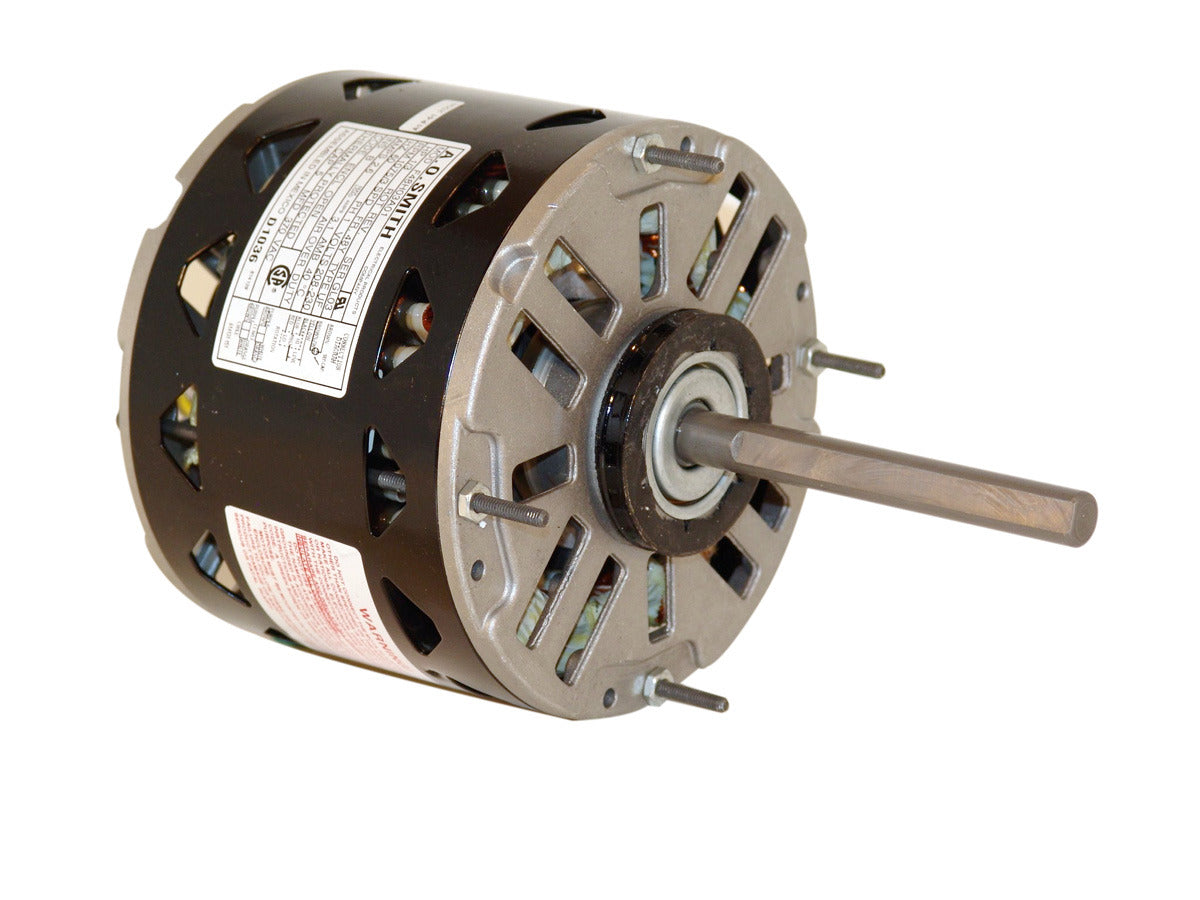

DL001 Century Fan & Blower Motor, 1/4 HP, 1075 RPM, 115 V, Single Phase, 48Y Frame, Open
DL001 Century Fan & Blower Motor, 1/4 HP, 1075 RPM, 115 V, Single Phase, 48Y Frame, Open
Regular price
$159.95 USD
Regular price
Sale price
$159.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
DL001 is a new-in-box Fan & Blower Motor from Century. Designed for Fan coils and dual-wheel blowers.
Specifications
| Manufacturer Part Number | DL001 |
|---|---|
| Product Type | Fan & Blower Motor |
| Horsepower | 1/4 HP |
| Rated RPM | 1075 RPM |
| Voltage | 115 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Electrical Type | Permanent split capacitor |
| Full Load Amps | 3.5 rated; 4.6 max |
| Insulation Class | B |
| Speed Count | 2 |
| Frame | 48Y |
| Enclosure | Open |
| Shaft Details | Single 1/2 in flatted shaft; resilient rings with adapters |
| Rotation | Reversible |
| Motor Diameter | 5.625 in |
Specifications reflect the exact manufacturer source verified for this product.
