TECO-WESTINGHOUSE

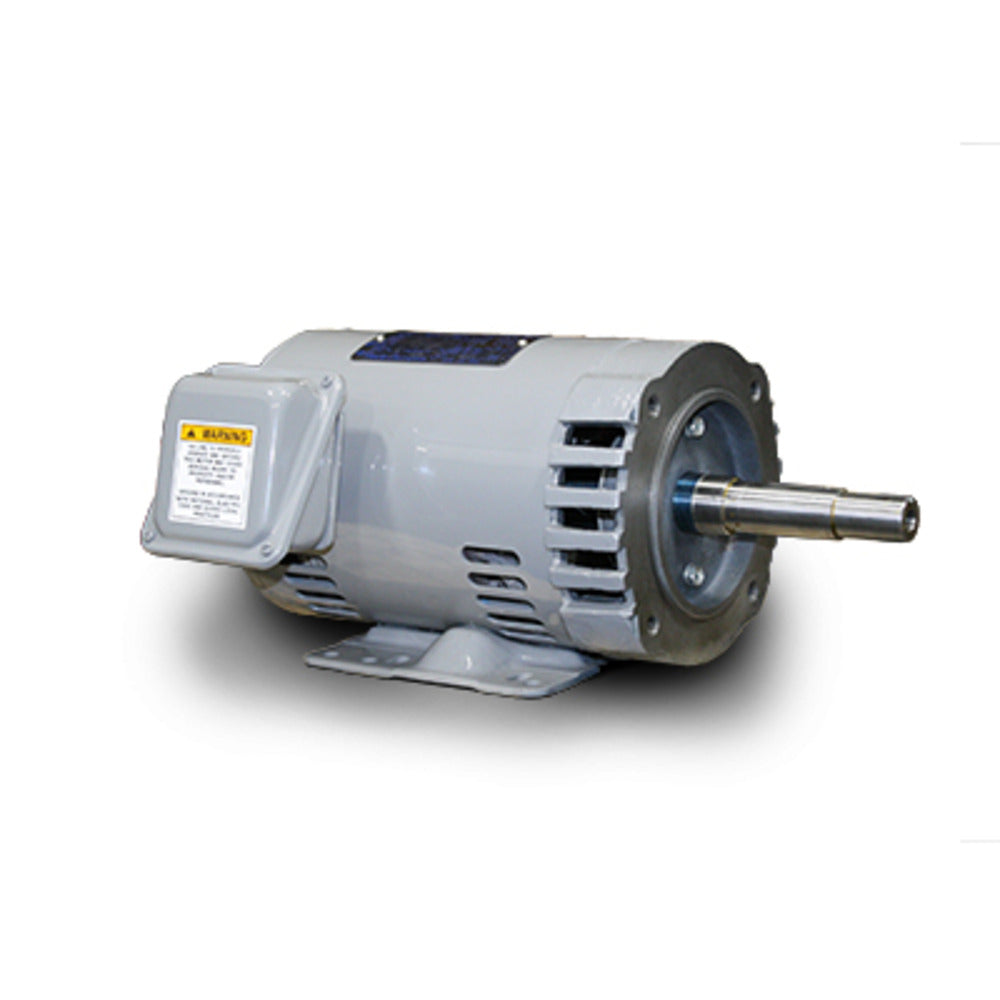

DJMP0032 TECO-WESTINGHOUSE Close-Coupled JM Pump Motor, 3 HP, 3505 RPM, 230/460 V, Three Phase, 145T Frame, ODP
DJMP0032 TECO-WESTINGHOUSE Close-Coupled JM Pump Motor, 3 HP, 3505 RPM, 230/460 V, Three Phase, 145T Frame, ODP
Regular price
$506.95 USD
Regular price
Sale price
$506.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
DJMP0032 is a new-in-box Close-Coupled JM Pump Motor from TECO-WESTINGHOUSE. Designed for Close-coupled pump.
Specifications
| Manufacturer Part Number | DJMP0032 |
|---|---|
| Product Type | Close-Coupled JM Pump Motor |
| Horsepower | 3 HP |
| Rated RPM | 3505 RPM |
| Voltage | 230/460 V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Electrical Type | Three-phase induction |
| Full Load Amps | 230/460 A |
| Service Factor | 1.15 |
| Duty Rating | Continuous |
| Ambient | 40 °C |
| Insulation Class | F |
| Frame | 145T |
| Enclosure | ODP |
| Mounting | Footed JM pump mounting |
Specifications reflect the exact manufacturer source verified for this product.
